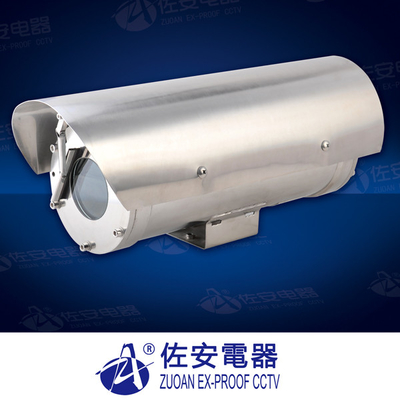

ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | explosion proof camera,flame proof camera,camera housing |
||
|---|---|---|---|
ATEX Outdoor Large Size IP66 stainless steel316L Explosion Proof CCTV Camera with wipersystem
Explosion Proof CCTV Camera Main features:
* ATEX,CNEx certificated
* Explosion Proof Certification: CNEx12.0006
* Explosion Proof Marking: Exd II CT6 & DIP A20, TA, T6
* Fit for gas zone 1, 2; dust zone 20, 21,22.
* Adopts stainless steel 304 or 316L
* Surface finish: electropolished or corrosion resistant paint finish
* IP68
* Equipped with auto wiper system and sunshiled for heavy polluted area
* 2 cable glands G3/4(NPT3/4)
* Strong Tempered glass with nanometer paint film
* Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
* Installation: mounted on ceiling, wall with pan &tilt, brackets.
* Inner size for camera:300*80*80mm (LxWxH)
* Operation temperature: -25 to 65 degree centigrade
-50 to +65 degree centigrade
* can load Sony camera, SAMSUNG camera, Hikvision Camera, Dahua Camera, thermal camera
Explosion Proof CCTV Camera Description:
ZAF100A-SS series is ZUOAN one of the most popular ATEX Outdoor Large Size IP68 Stainless Steel 316L Explosion Proof CCTV Camera housings/ cavity/ enclosure. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100A series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68. ZUOAN explosion proof camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera,dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF 100A housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement. ZAF100A explosion proof camera serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting. ZAF100A series can be mounted on fixed brackets(model: ZAZ100-B) for one point surveillance;it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF100A camera housing size: 420*195*194mm .98% cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.
Explosion Proof CCTV Camera Applications:
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Explosion Proof CCTV Camera Data sheet:
| ZAF100A-SS | |
| Crust | stainless steel 316L |
| Explosion proof marking | Exd II CT6 & DIP A20, TA, T6 |
| Explosion proof certification | CNEx12.0006 |
| IP rated | IP68 |
| Power input | AC85-265V, AC24V |
| cable output | 2 sets G3/4 or NPT3/4 |
| Window glass | Strong temperared glass |
| working temperature |
-25~65°C optional:-50~65°C |
| Netweight | 9.5Kg |
| max size for camera | 300*80*80mm |
| Overall dimension | 471*195*194mm |
| accessory | wiper, sunshiled |
Explosion Proof CCTV Camera Details images:
