H.264 CCTV Camera Outdoor / Indoor 120m Night Vision Support IPhone / IPad
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | network security camera,hd cctv cameras |
||
|---|---|---|---|

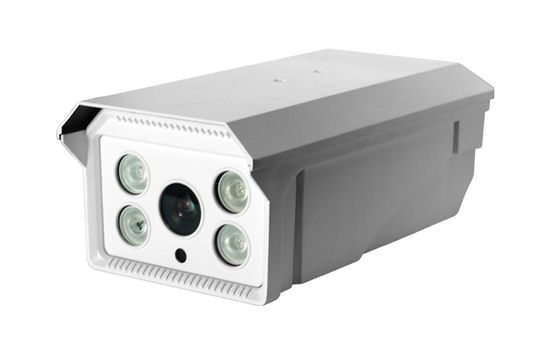

H.264 CCTV Camera Outdoor / Indoor 120m Night Vision Support IPhone / IPad
Features:
1. IR Distance 120m
2. 4pcs IR LED
3. Dual streams from H.264 and MJPEG
4. Up to 22 fps at 1280*720
5. Day and Night function (with IR-CUT)
6. Motion detection & Private zone
7. DC 12V / PoE optional
8. Supports iPhone, iPad, Android
9. ONVIF
Specifications:
|
Parameter |
Low illumination 1.0Mega Module |
|
|
Camera |
||
|
Image sensor |
1/3” 1.0Mega HD progressive scanning CMOS |
|
|
Picture Elements |
1280(H)*720(V) |
|
|
Minimum illumination |
Color mode 0.1LUX(F1.2) B/W mode 0.01LUX(F1.2) |
|
|
Dynamic range |
83.5dB |
|
|
AGC |
Auto/ manual |
|
|
IR LED Quantity |
2pcs LED |
|
|
Max IR Distance |
50m |
|
|
Lens |
||
|
Megapixel |
Yes |
|
|
Focal Length |
4/6/8mm for optional |
|
|
Day/Night |
Yes, with IR-CUT |
|
|
Lens Type |
Motorized Varifocal lens |
|
|
Lens mount |
C/CS, M12,Φ19 |
|
|
Image format |
1/3” |
|
|
Operation |
Focus |
Auto focus |
|
|
Zoom |
4x optical zoom |
|
|
Iris |
DC drive |
|
Operation |
||
|
Video compression |
H.264 High profile/ M-JPEG |
|
|
Maximum resolution |
H.264 Main stream(1280*720) |
|
|
Optional resolution |
1280*960 1280*720 720*576 720*480 CIF |
|
|
Image maximum frame rate |
30fps@1280*720 |
|
|
Output code rate |
Variable bit rate: 128K—6M |
|
|
Private zone |
4 private zones |
|
|
Motion detection |
4 motion detection zones |
|
|
Audio |
Optional |
|
|
SD card record |
Optional |
|
|
Local record |
Optional |
|
|
Alarm |
Optional |
|
|
Network Remote upgrade |
Support |
|
|
Password protection |
Support |
|
|
Network |
||
|
Interface |
One 10M/100M Self-adaption Ethernet Port, RJ-45 |
|
|
Protocol |
TCP/IP, HTTP, ICMP, UDP, SMTP, RTP, RTSP, SNMP, ARP,DDNS,DNS,PPPOE,P2P,802.1X,SCTP,NTP |
|
|
General |
||
|
Power supply |
12V DC, PoE optional 802.3af level 2 |
|
|
Power |
24W |
|
|
Working temperature |
-30 ℃-60℃ |
|
|
Working humidity |
0~90%RH (Non-condensing) |
|
