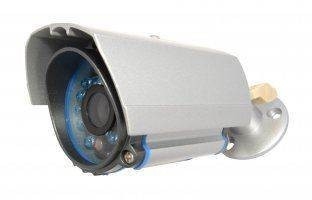

CCTV Camera 27X Auto Zoom DSP Color CCD Camera CEE CCTV Camera CEE-C027A
|
With RS485 connector (Support PTZ when you install it into the WaterproofDome Ball casing) 1/4"SONY Super HAD CCD 420TVL 27X 0.1LUX, Day/Night. |
Technical parameter |
|
Model |
CEE-Z27XN |
System of signal |
NTSC/PAL |
Image Sensor |
1/4"SONY Super HAD CCD |
Horizontal resolution |
420TV l ine |
S/N ratio |
50dB |
Minimum i l lumination |
0.1/0.5 Lux |
Total Pixels Number |
752(H)X582(V) 440K |
Lens |
3.9~85.5mm/3.9~105.3mm |
View angle |
49.6°~2.5° |
Electronic Shutter |
1/60to1/100000S(NTSC), 1/50to1/100000S(PAL |
Remote control operations |
With RS-485 signal Port |
White Balance |
Auto trackig |
Auto AGC control |
Auto control |
Backlight compensation |
ON/OFF |
Control connector |
Bus control DC±3V~±12V |
Focus Mode |
Bus control focus/Button control focus |
Video output |
1.0Vp-p, 75Ω |
Power supply |
DC12V±10%, 3.6W |
Power Consumption |
4.2W/350MA |
Working tempreture |
-20~50℃ |
Weight |
0.38kg |
Dimension |
6×6.4×10.3cm |
