1/3'' SONY 673 CCD + EFFIO - E DSP 700TVL CCTV Sony Effio Surveillance Camera 50Hz, 60Hz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | sony security cameras,sony cctv cameras |
||
|---|---|---|---|

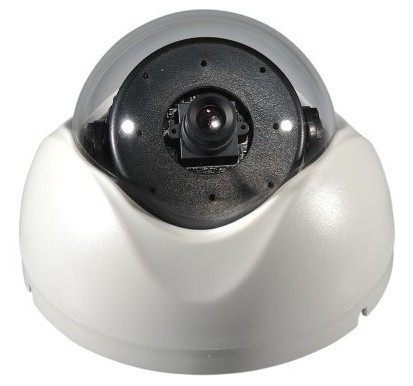

1/3'' SONY 673 CCD + EFFIO - E DSP 700TVL CCTV Sony Effio Surveillance Camera 50Hz, 60Hz
Description:
* 1/3 SONY 673 CCD + EFFIO-E DSP 700TVL high resolution
* 0.3 LUX /color illumination
* Plastic dome type camera / 3 axis
* 6000V surge protection / thunder proof
* 3.6mm MTV lens, 6/8/12/16mm optional
* Wire control OSD function available(optional)
* 9-18V wide range power input
* Double glass, anti-fog design
Specifications:
Model | BS-S670KD | |
Filter | Double Layers Crystal | |
Sensor | 1/3″ Sony 673 CCD + EFFIO-E DSP | |
Signal | PAL | NTSC |
Pixels | 960(H)×596(V) 570K | 968(H)×496(V) 480K |
Line | 700TV | |
Illumination | 0Lux / IR ON | |
Lens | f= 3.6 / 6 / 8 /12 /16 mm Lens Optional | |
Vertical | 50Hz | 60Hz |
Horizontal | 15.625KHz | 15.734KHz |
Clock | 28.375MHz | 28.636MHz |
Scanning | 2:1 Interlace | |
S.N.R | ≥50dB | |
E.S | 1/50-1/100,000s | 1/60-1/100,000s |
W.B | Auto Tracking | |
B.L.C | ON | |
A.G.C | ON | |
Gamma | 0.45 | |
Video Output | 1Vp-p, 75Ω | |
Power | DC/9-18V | |
Volume Weight | 0.3kg | |
