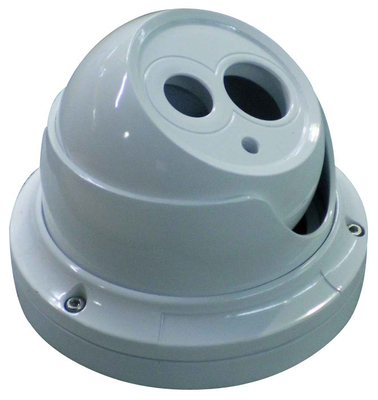

Weaterproof SONY Effio Camera OSD CCD 700TVL, 1 x IR array III IR LED, 25Meter, 8mm lens
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | sony ir camera,sony cctv cameras |
||
|---|---|---|---|
Weaterproof SONY Effio Camera OSD CCD 700TVL, 1 x IR array III IR LED, 25Meter, 8mm lens
Specifications:
|
Model |
BS-AS670ED |
|
|
Filter |
Double Layers Crystal |
|
|
Sensor |
1/3″ Sony 673 CCD + EFFIO-E DSP |
|
|
Signal |
PAL |
NTSC |
|
Pixels |
960(H)×596(V) 570K |
968(H)×496(V) 480K |
|
Line |
700TV |
|
|
Illumination |
0Lux / IR ON |
|
|
Lens |
f= 4 / 6 / 8 /12 /16 mm Lens Optional |
|
|
IR LED |
1 x IR array III |
|
|
IR Distance |
25Meter |
|
|
Vertical |
50Hz |
60Hz |
|
Horizontal |
15.625KHz |
15.734KHz |
|
Clock |
28.375MHz |
28.636MHz |
|
Scanning |
2:1 Interlace |
|
|
S.N.R |
≥50dB |
|
|
E.S |
1/50-1/100,000s |
1/60-1/100,000s |
|
W.B |
Auto Tracking |
|
|
B.L.C |
ON |
|
|
A.G.C |
ON |
|
|
Gamma |
0.45 |
|
|
Video Output |
1Vp-p, 75Ω |
|
|
IP Rating |
No |
|
|
Power |
DC/9-18V |
|
|
Volume Weight |
1kg |
|
Description:
* 1/3 SONY 673 CCD + EFFIO-E DSP 700TVL high resolution
* 0.3 LUX /color illumination, 0 LUX IR ON
* 1 x IR array III, 25 meters IR distance
* full metal casing, IP66 waterproof level
* 6000V surge protection / thunder proof
* 4mm MTV lens, 6/8/12/16mm optional
* Wire control OSD function available(optional)
* 9-18V wide range power input
* Double glass, anti-fog design
