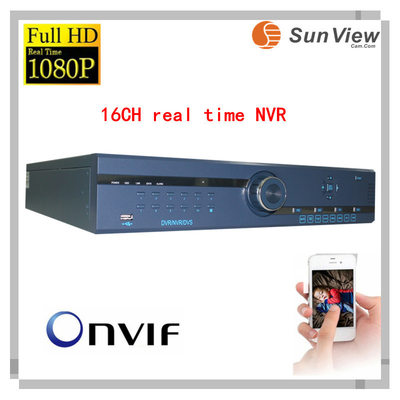

SunView SV-N1516 16CH 1080P HD ONVIF 2.0 network video recorder, NVR for IP camera

Model

SV-1504

SV-1509

SV-1516

System

Operating System

Embedded LINUX

Language

Chinese, English, Russian, French, Thai, Italian, Hebrew, Spanish,

Portuguese, Perish

Operation Mode

Preview, Record, Playback, Backup, Network, Mobile Surveillance

CPU

HI3520

HI3521

HI3531

Password Security

2 level, admin+User

Input

Video Input

4CH 1920*1080P

A. 9CH 1920*1080P

B. 4CH 3 Megapixel

A. 16CH 1920*1080P

B. 4CH 3 Megapixel

Audio Input

4CH

9/6/4CH

16/12/9

Alarm input

4CH

9CH

16CH

Output

HDMI output

1CH

VGA output

1CH

CVBS

1CH, BNC port

Display window

1/4

1/4/9

1/4/9/16

Audio output

1CH BNC auxiliary output

Alarm output

1CH

4CH

4CH

Parameters

Compression

H.264

Record Resolution

1080P@30fps;720P@30fps

Dual Stream

Support, every channel has 2 adjustable stream, main and sub

Audio Compression

G.711

Recording Mode

Boot, Timing, Alarm, Motion Detection

Mobile Monitor

Support iPhone, Windows Mobile, BlackBerry, Symbian & Android

Playback

4CH simultaneously

HDD

Type

2* Max. 3TB SATA HDD

External Port

Two Way Audio

Support,1CH line in,1CH line out BNC port

Network Port

1*10M/100M/1000M self-adaptive RJ45 port

Serial Port

1* RS485

USB Port

3*USB 2.0

Upgrade

Support U disk/ Network Upgrading

others

Power Supply

12V 4A

Power Consumption

Less than 25W (without HDD)

Working Tempeat.

-10°C--+55°C

Working Humidity

10%--90%

Housing

1.5U

Dimension(W×D×H)

350mm×240mm×70mm

N. Weight (No HDD)

≤3Kg
