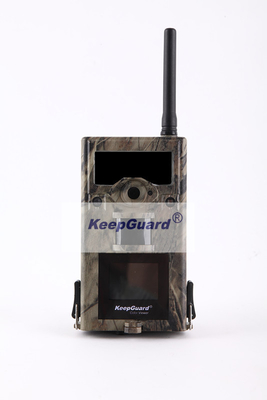

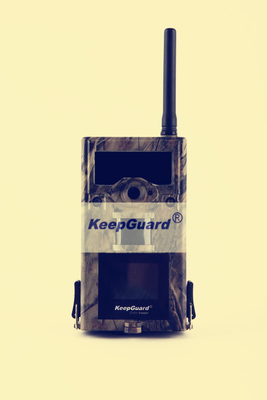

1080P Full HD Digital Wildlife Camera For Deer Hunting , Wild Game Trail Cam

1080P Full HD Digital Wildlife Camera For Deer Hunting , Wild Game Trail Cam

Photo Recording

                                Photo resolution:12MP;8MP;5MP;3MP
                                Image format:Full Screen,Wide Screen;Programmable
                                File format: JPEG
                                Capture number (Muti-Shot):1-3 Programmable
                                Photo stamp: Time, Day,Moon,Temperature;
                                Camera name:Input
                                Capture mode: Color by day, black and white by night


Video Recording

                                Video resolution: 1920*1080P
                                File format: AVI
                                Video length: 5~60sec;Programmable
                                Audio video: YES



The KEEPGUARD CAM has many advantages as follows:

Battery life has long been one of the biggest strengths of the KEEPGUARD CAM. This camera has low standby current and low day/night power consumptions.It consumes very little power (less than 0.28mA)

in a stand by (surveillance)state.This means it can deliver up to six months stand-by operation time  when the device is powered by 12 AA alkaline batteries, and up to twelve months utilizing lithium AA batteries.

The KEEPGUARD CAM is equipped with built-in infrared LEDs that function as a  flash, so that  it delivers clear photos or videos (in black & white) in the dark, and it can take color  photos or videos under sufficient daylight. The KEEPGUARD CAM is designed for outdoor use and is resistant against

water and snow.
The KEEPGUARD CAM is a digital scouting camera. It can be triggered by any movement of game in a  location, detected by a highly sensitive Passive Infra-Red (PIR) motion sensor, and then take high quality pictures or video clips.

Video Recording

                                Video resolution: 1920*1080P
                                File format: AVI
                                Video length: 5~60sec;Programmable
                                Audio video: YES

Lens
                                f=7.45mm, FOV=55°; F/NO:2.8; Horizonal View Angel =42°
                                Auto IR-Cut-Remove (at night)

Viewing

                                 LCD display: 2.4"Color Display
                                 computer output:USB2.0,Net cable connect

Time System

                                 Shutter speed: 1/10~1/2000 Second
                                 Self time mode: PIR Auto
                                 Trigger time: <0.8 Second
                                 Trigger interval:1~59 sec.;1~60min; Programmable
                                 Timed scan: 2X

Night time llumination System

                                  IR-Flash mode: Automatic Synchronization
                                  IR-Flash range: 20-25M
                                  IR-LED control: High,Medium,Low;Programmable
                                  LED: Dark glass/ No Glow /940nm LEDs

Detection System

                                  Motion sensor: PIR
                                  PIR sensitivity: High/Normal/Low/Auto
                                  Detection range:20-25M
                                  Field of viewing angle: 55°
                                  Indicating: Dual color indicating light,
                                  Photosensitive Resistance,
                                  Updating Light;

Power Supply

                                 Alkaline or lithium Batteries: Alkaline recommended
                                 Alkaline battery Pack:8xAA recommended;
                                                                   4xAA as emergency power
                                 External jack: 6V jack
                                 Connectivity: USB2.0, SD Card Holder;
                                                      TV Out(NTSC/PAL);DC External
                                 Solar panel: 6V
                                 Power consumption: <200mA (+600mA when IR-LED lighted)
                                 Stand-by current: <0.28mA(<7mAh/day)

Memory storage

                                External memory: SD/MMC Card (Max.32GB)
                                Internal memory:32M
                                DDR:512M
                                Image recycle: YES
