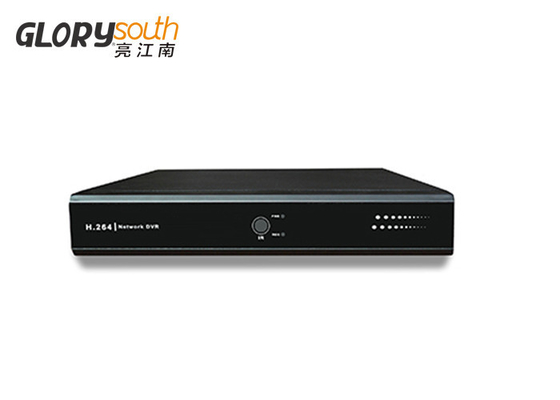

Black USB2.0 D1 960H HD Digital Video Recorder DVR 12V / 2A
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Category: | 4 / 8 / 16 CH D1 DVR | Material: | Metal |
|---|---|---|---|
| Color: | Black | Operating System: | Embedded LINUX |
| Video Compression: | H.264 | Power Supply: | DC 12V, 2A |
| High Light: | digital camera video recorder,digital video surveillance recorder |
||
H.264 4CH DVR HD Digital Video Recorder 8CH 16CH D1 or 960H Embedded DVR Black
Quick Detail:
- HD Digital Video Recorder
- 4CH 8CH 16CH Optional
- D1 or 960H Embedded DVR
- Black
- H.264
Specifications (4CH D1 as Example) :
|
Main Processor |
HISILICON Hi3515A chip |
|
System Resource |
Pentaplex: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring |
|
Control Mode |
Front panel, USB mouse, IR remote control, Keyboard, Network |
|
Video Standards |
PAL(625 line,50 f/s);NTSC(525 line,60 f/s) |
|
Coding capacity |
100/120fps 4D1@25fps |
|
Motion Detection |
Zones:396(22*18)detection zones, many Levels of Sensitivity Setting |
|
Surveillance Quality |
PAL,D1(704×576); NTSC,D1(704×480) |
|
Video |
4CH BNC Input 1CH TV Output 1CH VGA Output |
|
Audio |
4CH RCA Input,1CH RCA Output |
|
Alarm |
NO |
|
Play back |
4CH at the same time |
|
PTZ |
1*RJ485 Support PELCO-D,PELCO-P Procotol |
|
USB |
2 * USB2.0 |
|
Mobile Phone |
Support iPhone, Symbian OS, Blackybreey and Android Mobile phone |
|
HDD Capacity |
Up to 3TB,SATA Interface HDD*1 |
|
Network Interface |
1*RJ45,100Mbps Ethernet |
|
Upgrade |
USB DISK,Network |
|
Backup |
USB DISK,Network |
|
User Extend |
Design boot screen LOGO by yourself (Optional) |
|
Power Supply |
12V/2A |
|
Working Environment |
-10℃~+55℃/10~90%RH/86~106Kpa |
