Video and Audio Recording DVR Digital Video Recorder / 24 Channel NVR with LINUX System

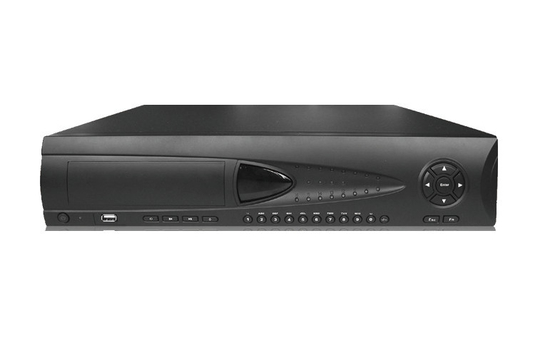

Large Image : Video and Audio Recording DVR Digital Video Recorder / 24 Channel NVR with LINUX System Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	pearmain
Certification:	CE, FCC
Model Number:	NVR16124K-PL

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	USD400/unit
Packaging Details:	special shipping carton, 20pcs/ctn, 55x51x24cm, 10kgs
Delivery Time:	15 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000units per week

Contact Now

Detailed Product Description

Digital Input:

24*1080P Or 32*720P /

Audio Input:

16ch Audio

Alarm:

1ch Input

Output:

2*BNC/1*VGA/1*HDMI

High Light:

digital video recorders

digital video recorder dvr

video and Audio recording , Digital Video Recording, Pearmain 24ch NVR

Quick Detail:

H.264 High profile compression algorithm ideal for standalone DVR

Realtime live display up to 4/8/16/24/32 cameras @ D1/960H/1080p encoding and decoding.

Pentaplex function:live,recording,playback,backup & remote access;

Support Dual-streams,to make mobile monitoring very easy,flexible for network

transmission

Smart camera settings:privacy masking,camera lock,color setting,and tittle display

Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload

With the sound system for the protection circuit, unique triple watchdog function, very low power

consumption, to ensure the equipment never be hang up.

Enable strong multi-way synchronization with max 8/16 channels playback, realize the

zero-delay between playback channels

CE, FCC, UL complicant

Description:

Linnux embedded H.264 High Profile Compression Algorithm

Support Maximum 8× 3T SATA HDD,Include Total Client Software,VGA,HDMI,PTZ,IR controller,Mouse,

Power supply,Adapter, etc.

DVR/HVR/NVR 3 in 1,Cloud technology (www.xmeye.net),standard HDMI output(1080P),

Built-in Intelligent Analysis System(PEA,OSC,CPC,AVD)

CPU: 1 * HI3531 400/480fps 960H,16ch playback.

Support 3G&WIFI, 1ch Spot output

Specifications:

	Model	NVR16108K-PL	NVR16116K-PL	NVR16124K-PL

System	Main processor	HI3520A	HI3521	HI3531
	Operating system	Embedded LINUX operating system
	System resource	Multi-channel real-time recording synchronously, single channel real-time playback, multi-channel multi-user network operation, USB back up.
Interface	Operation interface	16 bit real color GUI interface support mouse operation
	Display screen	1ch/4/8	1/4/8/9(8ch)/16	1/4/8/9/16/24
Video	Video standard	PAL(625 lines,50fps)；NTSC(525 lines,60fps)
	Image encode	H.264(High Profile)；
	Monitor quality	Monitor:D1；VGA:high definition；HDMI:high definition
	Playback quality	1080P/720P/960H/D1/HD1/CIF/QCIF
	Video input	8ch1080P/8ch 720P/16ch D1	16ch 1080P/16ch 720P/24ch D1	24ch 1080P/32ch 720P

	Motion detection	It could set 396pcs(22*18)detection zone, could set mutple-level sensitivity.
		(local input only)
Audio	compression	G.711A
	bidirectional talk	support
Record and playback	Record mode	manual>alarm>motion detection>timing
	Local play back	1/2/4ch
	Record search	Time,date,event,channel search
Storage and back up	Space occupation	Video:CIF 4~5G/daychannel, D1 16~20G/daychannel；
		audio:691.2M/day*channel
	Video storage	Local HDD, Network
	Back up mode	Network backup, USB portable HDD,USB RW,Sata RW

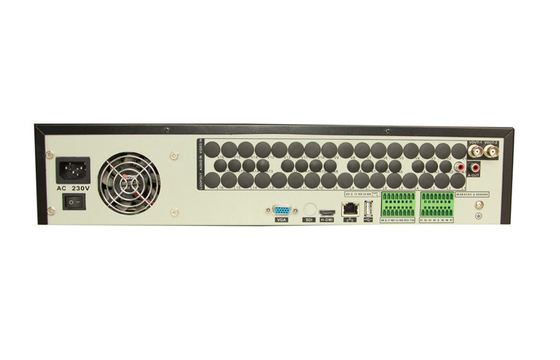

Interface	Video input	RJ45
	Video output	2ch BNC(1ch Spot),1ch VGA, 1ch HDMI
	Video loop	none
	Audio input	1ch RCA
	Audio output	1ch RCA
	Alarm input	16ch
	Alarm output	4ch
	Network port	RJ45 10M/100M/1000M self-adaptive Ethernet port
	PTZ control	1 RS485, 1 RS232; support multi kinds of PTZ protocol
	USB port	2 USB
	HDD port	8*SATA port, (max.3T per HDD)
	Wireless port	3G,WIFI ( by USB port)
Others	Onvif	support
	Power	ATX power supply unit
	Dimension	442mm(L)* 430mm(W)* 91mm(H)
