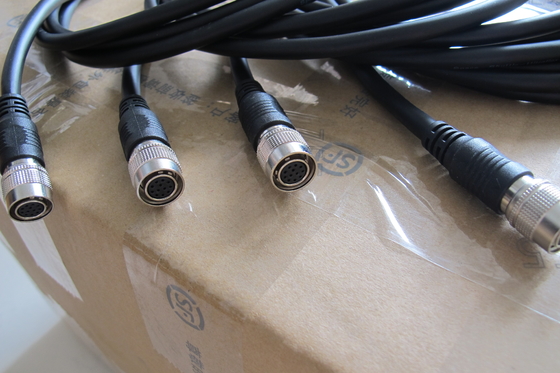

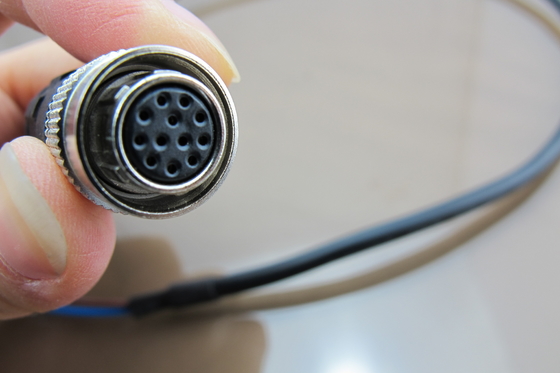

High Flex trigger I/O Hirose Cable for CCD Camera , Power Cable HR10A-10P-12S to Open

Large Image : High Flex trigger I/O Hirose Cable for CCD Camera , Power Cable HR10A-10P-12S to Open Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	DHT
Certification:	CE/ROHS/FCC/SGS
Model Number:	CCXC-02SR

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiation
Packaging Details:	1 piece per PE Bag then 20pcs per carton
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T or western Union
Supply Ability:	300,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Camera Link Cable	Application:	CCD Camera
Cable Length:	2.0 Meters	Interface:	HR10A-10R-12R
Connector:	HR10A-10P-12S	Feature:	High Flex,Chain Flex
Standard:	CE/ROHS/FCC/SGS	Type:	Overmolded
High Light:	industrial cable , hirose cables

high flex trigger I/O cable for CCD Camera,power cable HR10A-10P-12S to open 2meters

Specifications:

Physical	Cable Color	Black
	Connector	HR10A-10P-12S
	Jacket Material	PVC
	Shell Material	Polyester Elastomer
	Shell Color	Black
	Shell Construction	Pre mold in Poly Ethelene wrapped 360 degrees with copper tape terminated to shield, overmolded in black PVC.
	Cable construction	24AWG*12C+DRAIN+AL/MAYLOR OD6.5MM BLACK PVC JACKET UL2464
Electrical	Voltage Rating	DC 300V 0.08sec
	Current Rating	1A
	Insulation Resistance	20 Mohm MIN
	Dielectric Test	3ohm Max
Temperature Rating	- 20 to +75 Celsius degree

High Flex trigger I/O Hirose Cable for CCD Camera , Power Cable HR10A-10P-12S to Open 0

Description:

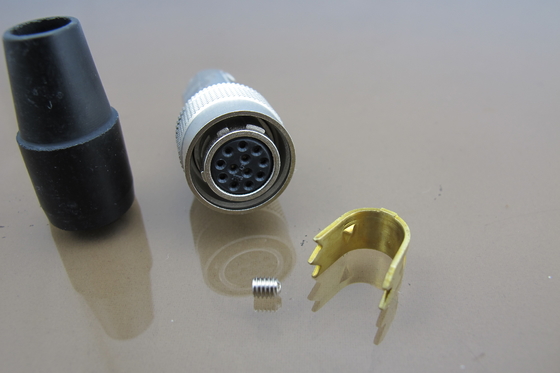

1, Supports all HR10A-10R-12P(73) receptacle.

2, CHAIN FLEX/HIGH FLEX CABLE ATTIBUTION. Designed for high-performance vision applications

3, Full shielded.High performance anti-interference

4, All connector Over Molded PVC

5, Entire cable bundle shielded with foil and Coaxial for signal protection.

6, Trigger signals and power cord

7, 0.5meter to 5meters lengths available

8, Straight connection and Right angle available

9, Cables can be customized for specified requirements

10, High flex cable and standard cable available

11. FLEX test term: Locomotive track Flex Radius Flex Speed

12. CCXC 12PIN SERIES CABLE AND I/O CABLE AVAILABLE.

Applications:

Indutrial Camera	DALSA,BASLER,SONY,COGNEX,CORECO,ADIMEC,EURESYS,JAI,IMPMEX,MATROX, DTA,PULNIX,EVISION,PLEORA,TOSHIBA TELI,NATIONALINSTRUMENT,REDLAKE,UNIQ,IDT,DVC,SILICONIMAGING,OMRON,PELCO, SENTECH,EPIX……
Imaging frame grabber	SONY,CORECO,EPIX,EURESYS,FORESIGHT,MATROX,EVISION,NATIONAL INSTRUMENT……
Machine vision	For all Camera Link standard interface
Equipment Systems	Automatic Optical Inspection system(AOI), Mould monitor, Robot device,Machine Arms,Medical Equipment,Factory Equipment……
