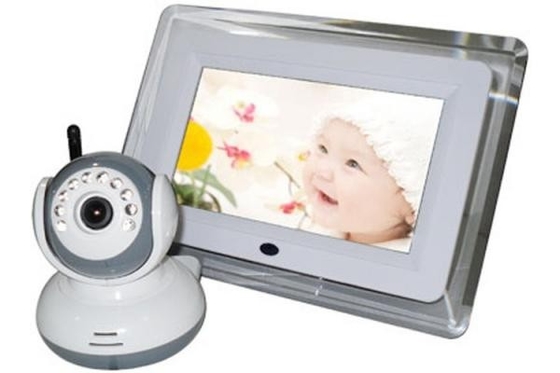

7'' TFT RGB Color LCD 2.4 GHz Digital Wireless Video Baby Monitors with Camera, 12 V DC

Common Factors:

Transmission Frequency:

2400 ~ 2480 MHz

Transmission Power:

17 dBm

Operating Frequency:

2450 MHz

Un obstruction Effective Range:

250m (820 feet)

Modulation Mode:

FHSS

Operation Temperature:

0 ~ 60 °C (32 ~ 140 °F)

Storage Temperature:

25 °C (77 °F)

Operating Humidity:

20 ~ 80 % R.H.

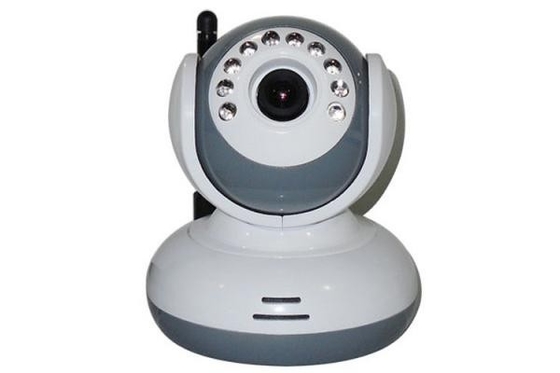

Camera:

Imaging Sensor Type:

1/3 CMOS

Picture Total Pixels:)

628 x 582 (PAL) / 510 x 492 (NTSC

Horizontal Resolution:

360 Lines

Frame:

25 fps (frame per second)

Horizontal Rotating Angle:

360°

Vertical Rotating Angle:

210°

View Angle:

60°

Minimum Illumination:

1.5 Lux

Band Width:

4 MHz

Night Vision Range:

3 ~ 5 m (9.84 ~ 16.4 feet)

Battery Working Time:

8 hours

Motion Detection Distance:

> 5 m

Sound Control Sensitivity:

> 60 dBA

Consumption Current:

150 mA + 15 mA

Power Supply:

5 V DC by AC Adapter (100 ~ 240 V for EU / UK / AU / US)

Battery Supply:

3 x 1.5 V AAA Alkaline Batteries (not included)

Dimension (Camera):

approx. 100 (L) x 86 (W) x 86 (W) mm (3.94 x 3.39 x 3.39 inch)

Weight (Camera) :

approx. 141 g (4.97 oz)

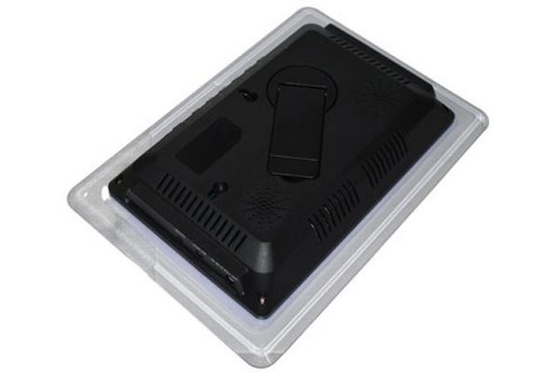

Receiver:

LCD Screen:

7 inch (17.8 cm) TFT LCD

Effective Pixels:

320 x 240

Receiving Sensitivity:

-85 dBm

Video System:

PAL / NTSC (Switchable in Setup Menu)

Color Configuration:

R.G.B.

Consumption Current:

150 mA + 15 mA

Power Supply:

12 V DC by AC Adapter (100 ~ 240 V for EU / UK / AU / US)

Dimension (Receiver):

approx. 230 (L) x 160 (W) x 33 (D) mm (9.06 x 6.29 x 1.29 inch)

Weight (Receiver):

approx. 453 g (15.98 oz)
