Onvif IPC Tester CCTV Camera Accessories with Video Display 10x zoom

large.img.alt
small.img.alt

Large Image :  Onvif IPC Tester CCTV Camera Accessories with Video Display 10x zoom Get Best Price

Product Details:
Place of Origin: Shenzhen China
Brand Name: EYEVISON
Certification: CE FCC RoHS
Model Number: HVT-2622
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Color package
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 per year
Detailed Product Description
High Light:

CCTV Camera Tester

,

Web Camera Tester



Onvif IPC Tester CCTV Camera Accessories with Video Display 10x zoom





Features:



1. —Link monitor; check the setting IP address whether occupied  NEW

2. —TDR break point and short – circuit measurement( BNC cable, network cable etc) NEW

3. —PTZ address scan, search up the ID of PTZ camera.

4. —Network cable and Telephone cable testing, display the sequence of connection and the No

of the LAN cable

5. —Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D,

SAMSUNG

6. Support RS232/RS485/RS422, rate 600 ~ 115200bps adjustable

7. —Lithium Ion Polymer Battery. The device employs advanced power control and protection circuit

8. —Display the data and image in on the screen at the same time.

9. —Easy for use that the train is almost unnecessary

10. Visual fault locator, It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.

—11. 10x zoom,video image can be magnified to view the details, easy to use





Functions:



1. Enhanced Color bar generator

Video Generating, the PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful imagines). By receiving the video color bar to test the video channel whether transmit normally. And judge whether the color is different, because of the transmission loss or interference, it suitable for Video transmission of the field tests, such as optical video transmitter and receiver, video cable etc.

The new function color bar can test the image whether shift.

The color bar (red, green, blue, white, black) test the monitor whether have white or black dot etc.



2. DC12V 1A output power

Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.



3. Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.



4. Cable tester

Test LAN cable or telephone cable.

Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as the serial number of the cable tester kit.



5. Image magnification(10xZoom)

Set image 10x zoom, can view and display the details by 1x,2x,3x,4x,5x,6x - 10X zoom in the monitor and tester.





Specifications:





Model

        HVT-2622/2622T(VI generation)

Video Test

Signal mode

NTSC/PAL (Auto adapt)

Display

3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution

LCD adjustment

Brightness, Contrast, Saturation adjustable

Video IN/OUT

1 channel BNC Input & 1 channel Output

Video

Output Mode

1.0 Vp-p

Video Level test

Level test

Video signals measured in IRE or mV

PTZ controller

Communication

Support RS232 and RS485

PTZ Protocol

Compatible with more than 30 protocols such as PELCO-D/P, Samsung,

Panasonic, Lilin, Yaan, etc.

Baud Rate

600,1200,2400,4800,9600,19200,57600,115200bps

Video Signal Generation

Color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor

or video cable.(red, green ,blue, white and black color )

UTP Cable tester

UTP cable test

Test UTP cable connection status and display in the screen. Read the number

of the test box.

DC12V 1A power output

DC12V power output

Output DC12V1A power for camera

Audio input test

Audio input test

test the pickup and other audio equipments on the front-end

RS485 data analysis

Data Monitor

Captures and analyzes the command data from controlling device

10x Zoom Image

 Image10x zoom



10x zoom image display and video out



Photograph,Video record, Record playback

Photograph

snapshot and save the current image as JPG file

Video record

Video record and storage the file

Record playback

To view the storage file in the SD card

Port flicker

Port flicker

Find the connected POE port quickly.

IP address scan,Link monitor,PING test

IP address scan

Find out the connected IP camera or the other network equipment IP address

quickly.

Link monitor

Check the IP address whether is occupied

PING testing

Test IP camera or Ethernet port of the other network equipment whether work

normally, and check the IP address

Cable scan(Wire tracker)

Cable scan

Search the cable by the audio signal

PoE tester

PoE tester

Display the power supply voltage and cable connection states

Video level meter

( Only for T model )

PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement

TDR cable tester     ( Only for T model )

TDR cable tester

Accurately measure BNC cable, network cable, control cable break-point and

short-circuits location.

Visual fault locator

Visual

fault locator

Test fiber’s bending and breakage ( SM and MM fiber)

POWER

Power Adapter

DC 5V(1.5A)

Battery

Built-in 3.7V Lithium polymer battery ,3000mAh

Rechargeable

After charging 3-4 hour, working time lasts 11 hours

Low Consumption

Energy saving technology, the battery icon real-time display

Parameter

Operation setting

English/Chinese and other languages OSD menu

Auto off

5-60 (mins)

Keytone

On/Off

General

Working Temperature

-10℃ ~+50℃

Working Humidity

30%~ 90%

Dimension/Weight

194mm x 112mm x 48mm / 540g

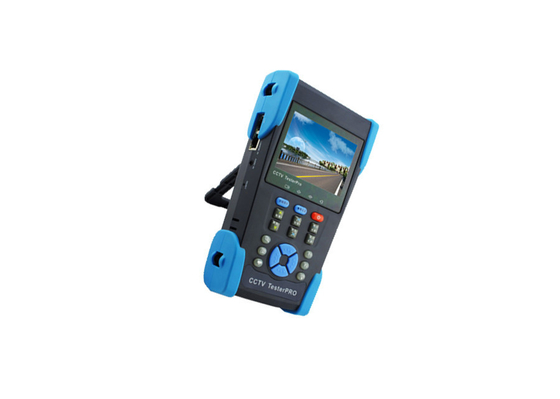

Product picture:



 Onvif IPC Tester CCTV Camera Accessories with Video Display 10x zoom 0



Onvif IPC Tester CCTV Camera Accessories with Video Display 10x zoom 1



Onvif IPC Tester CCTV Camera Accessories with Video Display 10x zoom 2



Onvif IPC Tester CCTV Camera Accessories with Video Display 10x zoom 3



Onvif IPC Tester CCTV Camera Accessories with Video Display 10x zoom 4
