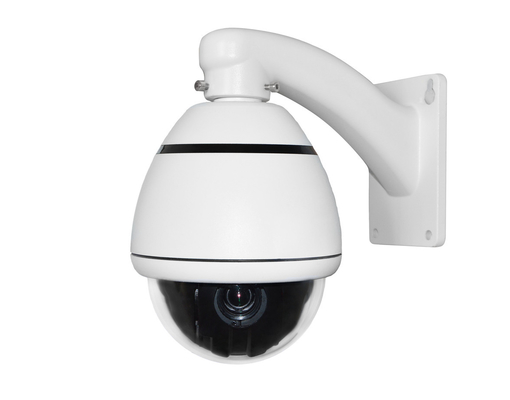

High Speed Network IR LEDs 2.0 Megapixel Waterproof HD PTZ Dome CCTV Camera

Model No .

HMY-M4AS-S

Image sensor

1/4" CMOS

Signal model

PAL/NTSC

 Horizontal resolution

800TVL

Effective pixel

1020(H) x 508(V)

Minimum illumination

Color to B/W,Color:0.1Lux,B/W:0.01Lux

S/N ratio

>60dB(Enhanced)

Back-light compensation

On/Off

White balance

Auto

Electronic shutter

PAL:1/50~1/10000 seconds  NTSC:1/60~1/12000 seconds

Focus length

5-50mm

Optical focus

10X

Focus

Auto / Manual / Push Auto , the use of high-performance DSP

to realize complete digit and ultra-high speed focus function

Presets

255

IR distance

120m

protection level

IP66

Patrol track

4groups, each can record 200 actions

Cruise track

Total 30 presets can join cruise, can setting the

presets' residence time

Other scan

Support Horizontal scan, deuce area scan, scan random

Rotation range

Horizontal 360°unlimited rotation, Vertical 90°,auto reversal

Rotation speed

Horizontal & Vertical Min 0.01°,Max 200°/S

Communications

RS-485, PELCO D, PELCO P

 OSD

yes

Power supply

DC12V/3A

Work environment

-20°C~+50°C (select temperature control accessories), <95%RH
