Network Video Recorder NVR which support P2P and support Mobile Phone Client onvif V2.4

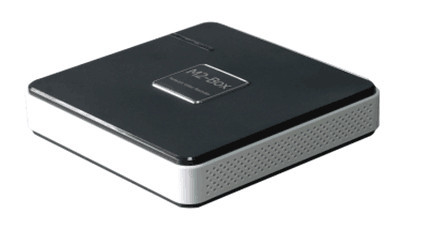

NVR200(M2-BOX)

Model

YS-NVR204C

YS-NVR204SL

Master chip

Hi3515A

Hi3515A

RAM

128MB DDR3

256MB DDR3

System

Linux

Audio input

 Bandwidth

20Mbps
(MAX 4channels 1080P@4M)

32Mbps
(MAX 4channels1080P@8M)

IPC input

4channels

4channels

AOUT AIN

N/A

1channel,RCA(Line in,2Vpp,1Kohms)

Audio output

CVBSoutput

N/A

1channel,BNC(1.0Vp-p,75ohms)

VGA

1channel,1280×1024,1280×720,1024×768 Optional

1channel,1920×1080,1280×1024,1280×720,1024×768 Optional

HDMI

1.3a standard

1280×1024,1280×720,1024×768 Optional

1920×1080,1280×1024,1280×720,1024×768 Optional

AOUT OUT

N/A

1channel,RCA(Line out,2Vpp,300ohms)

Audio-video coding

Audio coding standard

N/A

G.711A

Audio kbps

N/A

64Kbps

Aideo- audio decoding

IP Resolution

Main stream:MAX 1920×2048
Auxiliary stream:≤D1

Video bitrate

Average:D1 2Mbps,720P 4Mbps,1080P 8Mbps

Video codec

MPEG-4/
H.264(MAX High Profile@Level4.2)

Audio codec

G.711A,G.726

Playback

 MAX 4-way synchronous playback

Decoding Capability

4channel 720P@30

4channel 720P@30 or 2channel 1080P@30

Other

Talkback

NO

Two way radio accessories

Dynamic detection

Each screen can be set up 396 area；Set up multi-level sensitivity

Capture

SUPPORT

Hard Drives

SATA

one

Max Capacity

unlimited

External interface

Ethernet port

one  RJ45;10M/100M Adaptive Ethernet interface

USB

TWO USB2.0

Structure

Packaging

250x355x55mm

Size

1U,215x215x46mm

Weight

0.8Kg

Installation

 fixed on table

Performance

Power

DC +12V 2A

Working temps

0℃--＋45℃

Working Humidity

10％--90％

Power

5W

5W
