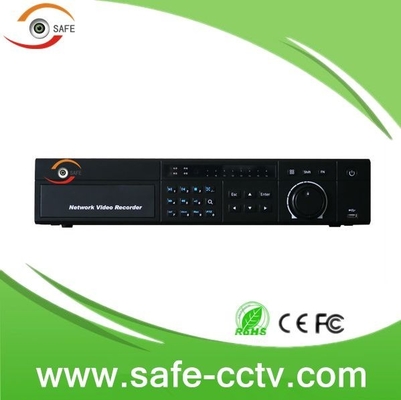

32 Channel 2U High Performance Multiple Channel Network Video Recorder, NVR,cctv nvr

Model

SA-Z0804N

Special function

P2P function (based on IE browser)

Using Device ID and password to login www.vssweb.net and manage multiple device together
No need complicated setting with Router, easy for end user to use network function.

System

Operating System

Embedded LINUX

Basic function

Live monitoring, recording, playback, backup & remote access

Control Mode

Front panel, USB mouse, IR remote control, Network

Hardware Solution

Hi3515A+ 256MB DDR3

Incoming bandwidth

32Mbps

Video

Max. Video Input

4 channel

IP Camera Input

4 channel D1@2Mbps or 4 channel 720P@4Mbps or 4 channel 1080P@8Mbps

Video Output

1 HDMI, 1 VGA, 1CVBS, BNC(1.0Vp-p,75ohms) 1920×1080, 1280×1024, 1280×720, 1024×768,

Support Protocol

ONVIF 2.2

Standard

PAL (625line ,50f/s)  NTSC (525line, 60f/s)

Audio

Input

1CH,RCA(Line in,2Vpp,1Kohms)

Output

1CH,RCA(Line out,2Vpp,300ohms)

Audio Talk

Reuse audio input channel 1

Audio Compression

G.711A

Audio Bit Rate

64Kbps

Image Display

Resolution

1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Display Split

Four zones for privacy masking for each channel

Recording

Compression

MPEG-4/H.264(High Profile@Level4.2)/G.711A

Resolution

Main stream: 1920x1080p max.
Auxiliary stream: D1 max.

Image Encoding

Adjustable encoding quality, variable code stream/fixed code stream

Dual Stream

Support

Record Mode

Manual, Auto(schedule), motion detection, stop

Time bar

Support

Video Detection

Trigger Events

Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips

Video Detection

396 (22×18) detection zone, variable sensitivity levels

Capture

Local and Software

Playback & Backup

Synchronous Playback

4 Channel Max.

Playback Performance

4 CH D1 or 4CH 720P or 2CH 1080P`

Backup Mode

USB, HDD, Network Backup

Network

Ethernet

1 RJ-45 port (10/100Mbps)

Network Function

HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, DHCP, PPPOE, DDNS, SNTP, FTP,P2P

Remote Operation

Monitoring, PTZ control, playback, system setting, file download, log information

Smart Phone Monitoring

iPhone, iPad, Android, Windows Phone, Blackberry

Hard Disk

Hard Disk

1 SATA ports, Up to 4TB

HDD Management

Hard disk hibernation technology, HDD faulty alarm

Auxiliary Interface

USB

2 ports, USB2.0

General

Power Supply

DC 12V/2A

Power Consumption

5W (without HDD)

Working Environment

0°C~+45°C / 10%~90%RH

Dimension(W×D×H)

1U, 215mm×215mm×50mm

Weight

0.8KG (without HDD)

Installation

Desktop type
