Home 4ch HDMI Input DVR Recorder , Mobile Phone Surveillance TV CCTV Camera DVR

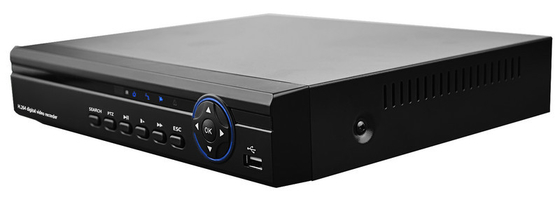

Large Image : Home 4ch HDMI Input DVR Recorder , Mobile Phone Surveillance TV CCTV Camera DVR Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	XVIM
Certification:	CE/ROHS/FCC
Model Number:	HD6004H-1

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Get latest Price
Packaging Details:	Brown Box
Delivery Time:	3-15 working days
Payment Terms:	T/T (40% deposit, remaining before delivery)
Supply Ability:	1,000pcs per month

Contact Now

Detailed Product Description

Compression:	H.264	P2P:	Support
Channel:	4-CH	Video Output:	VGA, HDMI, BNC
Playback:	4 CH Real Time	Remote Access::	IE, Mobile Device
High Light:	hdmi dvr recorder , security camera dvr

Home 4ch HDMI Input DVR Recorder , Mobile Phone Surveillance TV CCTV Camera DVR

DVR Features:

l H.264 real-time high compression, support dual stream network transmission

l Video output:VGA, BNC and HDMI

l display resolution: D1(4CIF) 704*576 (PAL),D1(4CIF) 704*480(NTSC)

l 1ch audio in,1ch audio output

l Support Motion Detection and email, will be sent to the assigned email address automatically

l Support IE,Mobile phone and special client software

l Support Pelco-P&Pelco-D PTZ control

l Multi-language OSD

Specifications:

DVR Spec
Video Compression	H.264
Video System	NTSC / PAL
Operation System	Linux Based

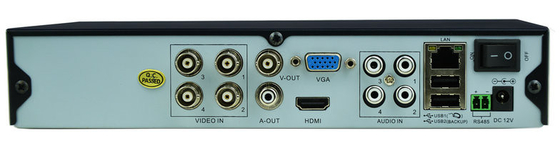

Video Input / Output	BNC 4-Channel Input / BNC 1-Channel Output
Other Video Output	HDMI/VGA/BNC
Audio Input / Output	RCA 1-Channel Input / RCA 1-Channel Output
Recording Frame Rate	NTSC: 240 fps D1@30 fps/ PAL: 200 fps D1@25 fps
Record Resolution	Selectable:D1 (704 x 480) ; CIF (352 x 240)
Record Mode	Continuous / Time Schedule / Motion Detection
Recording Pack Time	15/30/45/60mins Selectable
Simplex / Duplex /Triplex / Pentaplex	Pentaplex
Network	RJ45, 10M/100M
Net Protocol	TCP/IP, PPPoE, DHCP ,DDNS and Mobile Device
Remote Access	LAN or Internet Browsing
PTZ Control	RS-485
HDD Interface	SATA, Support up to 2TB
Sync Playback	4-CH
Playback Mode	Normal Play /Fast Forward /Fast Rewind/ Frame by Frame
USB Interface	USB Backup / USB 2.0
Remote Control	IR Remote Control
Power Supply	12V/2A DC
Power Consumption	IR on Max 1000mA
Dimension	260mm (W) x 230mm (D) x 50mm (H)
Language	20 languages
