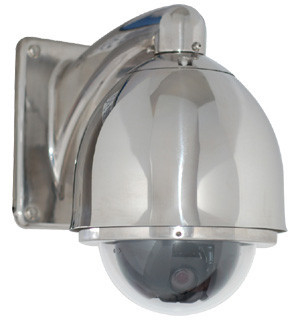

30X Optical Explosion proof High Speed Dome Camera / IP PTZ Camera with 12X Digital Zoom
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ex Marking: | Exd II CT6/DIP A20 TA, T6 | Optical Zoom: | 30x12， Sony FCB-EH6500, 1/2.8-type ‘Exmor’ CMOS, 30x Optical Zoom, 12x Digital Zoom |
|---|---|---|---|
| High Light: | explosion proof camera housing,ptz ip camera |
||
PEq50-30 IP HD Explosion proof PTZ camera, Pearmain Exproof high speed dome camera, 30x optical,12x digital zoom
Quick Detail:
304 or 316L Stainless steel material
it could automatically identify camera modules.
OSD menu
Multiple protocol support
360° continuous pan rotation, movement speed up to 300°/sec
IP68
Indoor and outdoor for all weather use
Support High definition output(1920x1080@30p)network encode output.
Description:
PEQ50 is an ex-proof monitoring ptz camera, with advanced technique and matured quality as its base, has been a successful product in market in the area of explosive and flammable for monitoring.
Integrated structure design, with no cable between pan/tilt and camera, turning at both pan/tilt and all direction.
It could automatically identify camera modules, including Sony,samsung, etc., all direction pan/tilt, and decoders inside, multiple communication protocol to response different orders.
100VAC~240VAC Supply voltage.
With alterable pan and tilt speed. Pan/tilt speed depends on lens focus and swivel range, 360° continuous panning, 90° tilting, 0.1° to 300°/s and maximum 400°/s on base of preset.
128 presets, including horizontal and vertical position of pan/tilt as well as focus position of lens.
It could work under -20℃ to +60℃ long-time stably.
Easy installation and maintenance, fixed brackets, base, pole or lattice tower for mounting.
CERTIFICATE
Ex-marking: ExdⅡCT6 / DIP A20 TA, T6
MECHANICAL
Material: Stainless steel 304 or 316L option.
waterproof: IP68
Pan: 360° continuous pan rotation
Tilt: +90° ~ -90°
Pan speed: 0.1°/S ~ 300°/S
Tilt speed: 0.1°/S ~ 120°/S
Preset speed: 400°/S
Ship weight: 15Kg, Unit weight: 12Kg
Mounting: Fixed bracket, base & pole
ELECTRICAL
Input voltage: 100VAC~240VAC, 50/60Hz
Current:＜300mA
Power: ＜30W
Communication: RS-485
Communication rate: Multiple, to be set
Preset: 128
Preset accuracy: ≤ 0.1°
Connection: 6-core for power, control and video.
ENVIRONMENTAL
Air pressure: 86～106KPa
Temperature: -45℃~+60℃
Humidity:≤95%RH(+25℃)
| Imager | 1/2.8 Type Exmor CMOS Sensor |
| Picture elements | 2140K pixels |
| Lens | 30× zoom |
| F= 4.3 mm (WIDE) to 129 mm (TELE), F1.6 to F4.7 | |
| Zoom movement speed | Optical WIDE - Optical TELE |
| 4.6 sec (Focus Tracking ON) | |
| 3.2 sec (Focus Tracking OFF) | |
| Optical WIDE - Digital TELE | |
| 6.7 sec (29.97p/59.94p mode) | |
| 7.1 sec (25p/50p mode) | |
| Digital WIDE - Digital TELE | |
| 2.2 sec (29.97p/59.94p mode) | |
| 2.7 sec (25p/50p mode) | |
| Focus Movement time | ∞ to Near 1.1 sec |
| Digital zoom | 12× (360× with optical zoom) |
| Angle of view (H) | Approx. 63.7 degrees (wide end), |
| approx. 2.3 degrees (tele end) | |
| Min. working distance | 10 mm (wide end), 1200 mm (tele end) |
| Sync system | Internal |
| Min. illumination (Typical value) | 0.35 lx (1/30 sec, 50%, High Sensitivity mode ON) |
| 1.4 lx (1/30 sec, 50%, High Sensitivity mode OFF) | |
| 0.05 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode ON) | |
| 0.19 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode OFF) | |
| ICR-ON Mode | |
| 0.013 lx (1/30 sec, 50%, High Sensitivity mode ON) | |
| 0.05 lx (1/30 sec, 50%, High Sensitivity mode OFF) | |
| 0.002 lx (1/4 sec, 1/3 sec, 30%,High Sensitivity mode ON) | |
| Recommended illumination | 100 lx to 100,000 lx |
| S/N ratio | 50 dB (Weight ON) |
| Back light compensation | ON/OFF |
| Electronic shutter speed | 1/1 sec to 1/10000 sec (22 steps) |
| White balance | AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Gain | Auto/Manual (0 to 28 step) |
| Max. Gain Limit (6 to 28 step) | |
| Wide dynamic range | ON/OFF |
| Noise reduction | ON/OFF (level 5 to 1 / OFF, 6 steps) |
| Defog mode | ON/OFF |
| Color Enhancement | ON/OFF |
| Aperture control | 16 steps |
| Preset | 16-POSITIONS |
| Serial interface | VISCA protocol (CMOS 5V), 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2kbps, Stop bit, 1 bit |
| Video Output | HD: Analog component (Y/Pb/Pr), Digital (LVDS), Analog SD: VBS |
| Storage temperature/Humidity | -20 °C to +60 °C (-4 °F to +140 °F)/20% to 95% |
| Operating temperature/Humidity | -5 °C to +60 °C (23 °F to +140 °F)/20% to 80% |
Applications:
it is very good for the market in the area of explosive and flammable for monitoring, like mining, petrol, etc.
