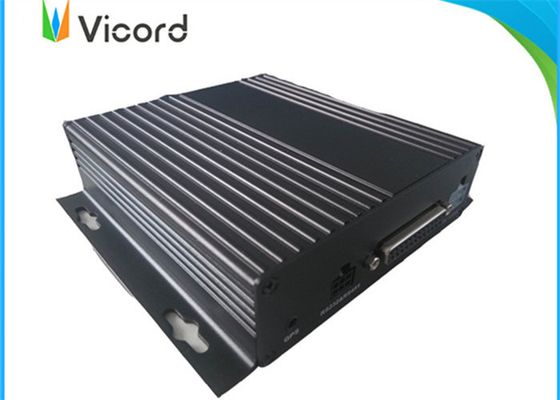

High Definition Portable GPS Mobile HD DVR Recorder Support 64G SD

Large Image : High Definition Portable GPS Mobile HD DVR Recorder Support 64G SD Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Vicord
Certification:	CE, FCC,ROHS
Model Number:	MCS1GNN

Payment & Shipping Terms:

Minimum Order Quantity:	200
Delivery Time:	1-4 weeks after get the full payment
Payment Terms:	T/T 100% before shipment
Supply Ability:	50000 pcs/per year

Contact Now

Detailed Product Description

Operating System:	Linux	Interface:	BNC\VGA\HDIM
PTZ:	Support Local And Remote PTZ Control	Encode Capacity:	4ch D1 Real-time（default CIF）
Record Storage:	SD	Weight:	420g
High Light:	car dvr with gps , hdd mobile dvr

High Definition Portable GPS Mobile HD DVR Recorder Support 64G SD

Product introduction

Mobile DVR is a high level SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, integrates latest H. 264 AV codec standard, high capacity hard disk storage, mature shock absorption technology, network streaming media, AV noise reduction, wide range voltage design and patent power-off protection technology, support GPS , brief outward, easy installing, system is safe and reliable.

Product Features:

With various decoding protocol and baud rate, our products support PTZ, cameras and speed dome etc. Control
Good anti-vibration and anti-high temperature function for stable picture quality
4CH CIF, HD1, D1 full real-time recording
Video recording mode: Auto recording, alarm recording, timed recording, manual recording
Elegant and industrial design: Mini size, for easy installation
G. 711 audio compression, 4CH audio input, 1CH audio output
Operating temperature: 0℃-＋55℃
Special function:GPSdata,wide voltage,mobile DVR player,SDK etc
Operation interface:similar to Windows operating style

SPECIFICATIONS

	Model	MCS1GNN
system	Main processor	Industrial Embedded Microcontrollers
	Operating system	Embedded LINUX
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
interface	preview screen	1/4
video	vdieo standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
	vdieo compression	H.264(High Profile)
	display quality	monitor:D1
	play quality	D1/Half-D1/CIF/QCIF
	encode capacity	4ch D1 real-time(default CIF)
	decode capacity	2ch D1 real-time
	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
audio	bidrectional talk	supported
Record & playback	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
	search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel； audio:691.2M/ day*channel
	record storage	SD
	backup mode	Network backup,USB,USB Burn
interface	video input	4ch
	video output	1ch RCA (1.0Vp-p,75Ω),1ch cable
	audio input	4ch
	audio output	1ch(200-3000mV,5K)
	alarm input	no
	alarm output	no
	net interface	no
	PTZ control	One RS485,one RS232
	USB	One USB
Mobile interface & functions	GPIO	Support OSD overlay, storage(optional) etc
Mobile interface & functions	GPS	Support
	others	support delay boot up/shut down,timing boot up/shut down
complement	player	mobile exclusive player,Support google map,showing vehicle running track and data.
complement	SDK	Free SDK for second development
others	Power supply	Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output
	Power consumption	Less than 10W
	Working temperature	0℃-＋55℃
	Working humudity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Dimension	130(L)147(W)36(H)mm
	weight	420g
