20x Optical Zoom Exmor CMOS High Speed Digital Video Camera Full HD IR
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | High Speed Dome Camera | Sensor: | 2MP 1/2.8” SONY Exmor CMOS |
|---|---|---|---|
| IR Distance: | 150-180M | Pixel: | 2Megapixel |
| Transmission Model: | Dual Stream | Power Consumptionm: | 60W MAX |
| High Light: | high speed ip camera,home surveillance cameras |
||

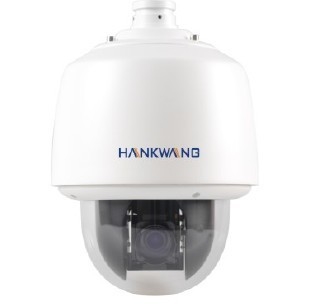

20x Optical Zoom Exmor CMOS High Speed Digital Video Camera Full HD IR
Quick Details:
1. SONY 2 Megapixel, Exmor COMS HD camera module.
2. Max 1080P resolution, support 20X optical zoom and 12X digital zoom
3. Manual horizontal control speed:0.05-400°/s, preset accuracy0.05°
4. 360°continuous pan rotation, -12°~90°tilt rotation.
5. Built-in Osram efficient IR array LEDs, IR distance up to 150-180M
6. Cast aluminium housing, Metal Camera, IP66 protection
7. Internal special airduct design, support intelligent demist function
8. Support HD video intelligent analysis function, include tripwire detection, Object lost&left behind detection…
9. Support auto-tracking function, support alarm trigger tracking model.
10. Support OSD digital HD video vector menu, can set advanced parameter remotely.
11. Support special 3D positioning function.
12.Support IOS/Android/Windows Mobile view and control.
13.Support ONVIF, can connect video by player (VLC) directly.
14.Support MicroSD Card for local storage
SPECIFICATIONS
| Camera module HKF-RC20B | |
| Sensor | 2MP 1/2.8” SONY Exmor CMOS |
| Pixel | 2Megapixel |
| Image Size (H*V) | 1920x1080, 1280x720, 720x480, 720x576 |
| Frame rate | 1080P@25 F/S,1080P@30 F/S |
| WDR | ON/OFF |
| Electronic shutter | 1/1-1/10,000S |
| White balance | Auto, ATW, Indoor, Outdoor,One-push, Manual |
| 3D noise reduction | Support |
| Mini. Illumination | High light model: 0.5lx(F1.6,50IRE,ICR off) |
| 0.095lx(F1.6,50IRE,ICR ON) | |
| Normal model:1.7lx(F1.6,50IRE,ICR off) | |
| 0.3lx(F1.6,50IRE,ICR ON) | |
| Day/Night | Auto(ICR) |
| Video parameter | set image brightness/contrast/saturation by IE |
| Camera parameter | Manual adjustment by OSD menau |
| Lens | |
| Focal length | 20X(f=4.7-94mm) |
| Horizontal Field | 55.4°(w)~2.9°(t) |
| IR Function | |
| IR distance | 150-180M |
| IR Lens | 14pcs Osram IR array LEDs |
| Interface | |
| Network interface | 10M/100M, RJ45 interface |
| MicroSD Card | MicroSD(TF)Card(Max 32G),support manual recording/alarm recording |
| Audio interface | 1-channel audio input & 1-channel audio output |
| Alarm interface | 8-channel alarm input & 2-channel alarm output |
| Analog video | 1.0V[p-p]/75Ω,PAL or NTSC,BNC |
| API | Onvif2.0 |
| Encode model | |
| Core processor | Cortex-A9 SoC processor |
| Operating system | Embedded Linux |
| Video compression | H.264/M-JPEG |
| Audio compression | G.711/G.726/ADPCM |
| Audio sample rate | 64bit/sample |
| Encode type | BaseLine Profile/Main Profile/High Profile optional |
| Video compression code rate | 32K～16M Bps |
| Audio compression code rate | 8K～48K Bps |
| Transmission model | Dual stream |
| PTZ | |
| Manual speed | 0.05°～400°/s(stepless speed) |
| Max preset speed | 400°/s |
| Preset accurity | ±0.05° |
| Horizontal rotation range | 360°continuous rotation |
| Vertical rotation range | -12°~90°auto flip |
| preset | 255 |
| Auto scan | 8 |
| Auto cruise | 8 |
| Pattern tour | 8,each one with 180s memory or 300 orders |
| OSD menu | Support various languages, various functions & parameter adjustment. |
| 3D Positioning | Support |
| Power off memory function | Support |
| Guard function | Link preset/scan/cruise/pattern |
| Time task | Preset/scan/cruise/pattern/auto-tracking |
| Motor | Hybrid high-accuracy stepless motor |
| Speed setup according to the focal distance, | Auto rotation speed adjust in accordance with the lens zoom rate |
| Protocol | PELCO-P,PELCO-D |
| Heater | Auto |
| Wiper | Optional, it can be controled remoted |
| Auto demist | Support |
| Others | |
| Intelligent analysis | Tripwire detection, Object lost&left behind detection |
| Auto-tracking | Support auto-tracking function, support alarm trigger tracking model |
| IE browser | Support |
| Mobile | Support iOS/Android/WindowsMobile |
| Client | ≤8 |
| Network protocol | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP |
| IP adress | Support static state IP address,DDNS |
| OSD charactor | Support character, time and PTZ angle |
| Authority | 4 level,128 users |
| System clock | Build-in clock, support external synchronization |
| Remote mamagement | Remote network upgrade |
| Intelligent alarm | Motion detection, shield alarm, port alarm, intelligent analysis, auto-tracking |
| General | |
| Protection level | IP66,TVS 4000V lightning protection |
| Working humidity | -40℃～60℃ |
| Working temperature | 0～95%(No condensation) |
| Power supply | AC24V 3A/DC24V 5A self-adaption |
| Power consumptionm | 60W MAX |
DMENSIONS
