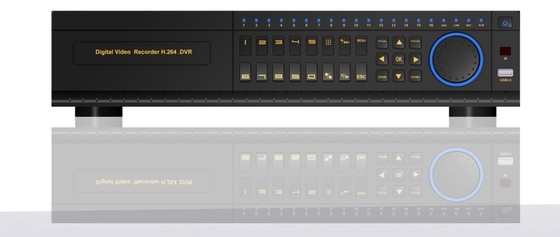

1U 1080p HD SDI DVR Support 8 Pieces SATA, 1U 1080p Security Digital Video Recorders

large.img.alt
small.img.alt

Large Image :  1U 1080p HD SDI DVR Support 8 Pieces SATA, 1U 1080p Security Digital Video Recorders Get Best Price

Product Details:
Place of Origin: shenzhen
Brand Name: LS Vision
Certification: CE, FCC
Model Number: LS-VSDI4DF1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 0~1000USD/pc
Delivery Time: within 7 working days
Payment Terms: paypal, T/T,Western Union
Detailed Product Description
High Light:

hd sdi dvr

,

4 ch dvr

,

1u hd sdi 4ch dvr

1U 1080p HD SDI DVR Support 8 Pieces SATA, 1U 1080p Security Digital Video Recorders, LS-VSDI4/8/16DF

Key Features:

  • 4CH SDI 1080P video input
  • 100/120fps
  • 4CH 1080P real time display and real time recording
  • True color GUI, windows style, easy to use
  • Multi-mode recording: manual, continuous, motion, sensor
  • Playback: 4CH simultaneously playback
  • Search: time/calendar,events(alarm, motion)
  • Backup: USB, DVDRW(Sata), IE, CMS; support multi-file, file cutting when backup
  • Pentaplex: live, record, playback, backup and remote operation
  • DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
  • Dual stream technology to encode recording stream and network stream respectively. User can adjust network stream to fit bandwidth without changing recording quality
  • Multi-user online simultaneously
  • HDMI 1080P output
  • Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
  • Cell phone: iPhone, iPad, Android, Blackberry, Symbian, Windows CE/Mobile
  • Complete SDK function, easy to integrate with other applications
  • 1U DVR case

LS-VSDI4DF1 series is 4ch 1U 1080p HD-SDI DVR, real time across all channels. LS VISION HD SDI DVR is cost-effective performance. By using the leading technology SOC and standard H.264 compression, LS VISION HD SDI DVR has high quality video image and stable performance.

The benefit of the HD-SDI systems:

The HD-SDI products provide over five times the image quality of conventional analog technology and offer a more cost-effective and easier alternative to network-based systems, using standard coax cable.

Application:

HD-SDI is ideal for applications where evidence grade images are required, such as airports, ports, banks, casinos and retail environments, but where is it not viable or cost effective, to transmit the images over a network.

Details show

Specifications

Model

LS-VSDI4DF1

System

Compression

Standard H.264 High Profile

CPU

Cortex A9 Dual Core

OS

Embedded Linux

Video

HDMI

1video output +audio output

Input

SDI X 4

Output

BNC X 1

VGA x 1: 1080P(1920 x 1080)

HDMI x 1: 1080P(1920 x 1080)

Audio

Input

SDI X 4

Output

1 RCA

Record

Resolution

1080P(1920 x 1080)

Frame Rate

100fps(PAL)

120fps(NTSC)

Bit rate

128K~12Mbps

Encode

VBR/CBR

Quality

5 Level

Mode

Manual, timer, motion, sensor

File manager

Lock, unlock, reserving time, redundancy

Playback

Playback

4CH

Search

Time, motion, sensor, single or multi-channel

Function

Play, Pause, FF, FB, Shuttle control, Jog; Digital zoom

Alarm

Mode

Sensor, motion, video loss

Input

4CH

Output

4CH

Triggering

Record, PTZ move, relay out, e-mail, etc

Network

Interface

RJ45 Giga ethernet

Protocal

TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS,E-mail

Others

10 users online, dual stream

Cell

phone

OS

Iphone, Blackberry, Andriod, Windows mobile, Symbian

Function

Multi-channel display, server list, record, playback, PTZ, log

I/O

HDD

SATA 2, eSATA 2, 2T per HDD, support DVD-RW

RS485

RS485 x 2

USB

USB2.0 x 2

IR controller

Yes

Others

Power supply

AC:110V/220V

Work

Environment

0~50 ℃,10%~90% Humidity

Payment
  1. PayPal
  2. Credit Card
  3. Wire Transfer
  4. West Union

Certification
HD-SDI ce_
FCC__

Services

RMA

NOTE: The RMA# will be given with the response email. Return shipping charges will be the buyer`s responsibility.

About US

LS Vision Technology Co., Ltd is a high-tech enterprise that specializing in the R&D, manufacturing

and sale of security system product. We have been the leading supplier of 1080p HD-SDI cameras,

Megapixel HD IP cameras, CCTV cameras and intelligent HD & D1 DVR recorder.

LS Vision will incessantly offer noteworthy high quality products and professional service with the deep technical accumulation, reasonable human resource and farsighted strategy. We sincerely welcome you contact with us and do the mutual benefit business with each other in the near future!
