Product Details:
|
High Light: | high definition security dvr,cctv camera dvr |
---|
|

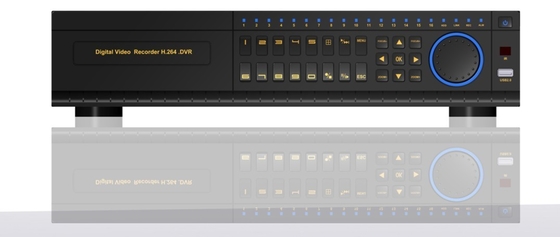

Full HD resolution with SDI technology these DVR reach over 5 times higher resolution. Using SDI technology they record video in Full HD 1920x1080 @ 25 f/sec. but require HD-SDI cameras which can be wired using standard coaxial cables, the same used for analogue systems.
|
Key Features: |
|
Functions: NO.1 schedule |
No need to input the time line to set the recording schedule. Use the mouse to chose the time line when you need it for daily recording (Green Color) and when you need it for alarm recording (Red Color)
|
Functions: NO.2 Trigger Alarm |
|
Functions: NO.3 Calendar easy set the time/date |
|
Functions: NO.3 DVR support P2P functions. You scan the QR Code From the DVR, You will get the info from Clound Sever |
CLOUD server with P2P technology
|
Functions: NO.3 Monitoring your DVR with smartphone and tablet |
DVR can be monitored and setup by mobile phones. |
Functions: No.4 Push notifications on your smartphone |
|
Applications |
HD SDI SYSTEM |
Model |
LS-VSDI4DF1 |
|
System |
User Interface |
Graphic User Interface (OSD) |
OS |
Embedded Linux |
|
Operation Mode |
preview, record, playback, backup, network,mobie phone |
|
Multi-Language |
English, Simple Chinese, Spinish, Russian, French, Italian, Portuguese |
|
CPU |
HI3531 |
|
Password Security |
Multi-level user management |
|
A/V Input |
Video input |
4 CH SDI Connector |
Audio input |
4 CH BNC Connector |
|
A/V Output |
HDMI output |
Supports |
VGA output |
||
Display |
1/4 optional |
|
Video standard |
PAL/NTSC |
|
Loop |
support |
|
CVBS |
main output 1CH, BNC connector |
|
Spot output |
1CH,BNC connector |
|
Audio output |
1CH,BNC connector |
|
A/V encoding parameters |
Video compression |
H.264 |
Display frame rate |
PAL:100 fps(4 x 25 fps).NTSC:120 fps(4 x 30 fps) |
|
Recording frame |
PAL:100 fps(4 x 25 fps).NTSC:120 fps(4 x 30 fps) |
|
Video encoding resolution |
PAL:D1(704X576)/HD1(704X288)/CIF(352X288)/1080P(1920x1080)/720P(1280X720) |
|
Video frame rate |
PAL: 1-25FPS NTSC:1-30FPS |
|
Video bit rate |
720P:1536kbps-3072kbps, 1080P:4608-6144kbps,D1:768-1536Kbps,HD1:512-1280kpbs,CIF:384-768kbps,QCIF:192-384kbps |
|
Stream Type |
Video & Audio/Video |
|
Audio compression |
ADPCM |
|
Recording mode |
Always/Schedule/Alarm recording/Motion detection recording |
|
Video search |
Time/Channel/Event |
|
Audio bit rate |
8—32kbps |
|
Dual-stream |
Supports |
|
Mobile phone |
Supports Android phone/iPhone/iPad/Blackberry |
|
Recording resolution |
4CH 1080P Recroding + 4CH 1080P realtime Playback |
|
HDD |
Type |
2 pieces SATA |
Maximum capacity |
4 TB for each Sata connector |
|
External connectors |
Voice talk |
Support, 1CH BNC line in/1CH BNC line out. |
Record mode |
Audio & Video recording simultaneously |
|
Remote control |
Supports |
|
Mouse control |
Supports |
|
Network protocol |
Supports IE/PPPoE/DDNS |
|
Domain name server |
Support 3322, dyndns, no-ip, changeip, dnsexit domain name server as default value. |
|
Network |
2 RJ45, 100M and 1000M Ethernet |
|
Serial port |
2 RS-485 serial port |
|
1 RS-232 serial port |
||
E-SATA |
Connector Supports |
|
USB Connector |
2 USB 2.0 |
|
Firmware update |
Support USB update/Network update |
|
Alarm input |
4 in |
|
Alarm output |
2 out |
|
Others |
Power supply |
AC110-240V |
Power (without HDD) |
≤70 W |
|
Operation Temperature |
-10°C--+55°C |
|
Operation Humidity |
10%--90% |
|
Chassis |
Standard 1.1U |
|
Dimension |
321mm(W)×405mm(L)×64mm(H) |
|
Weight(without HDD) |
≤3Kg |
