H.264 8Ch Digital Video Recorder For CCTV , Computer Video Recorder RS485
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | hd sdi video recorder,network video recorder |
||
|---|---|---|---|

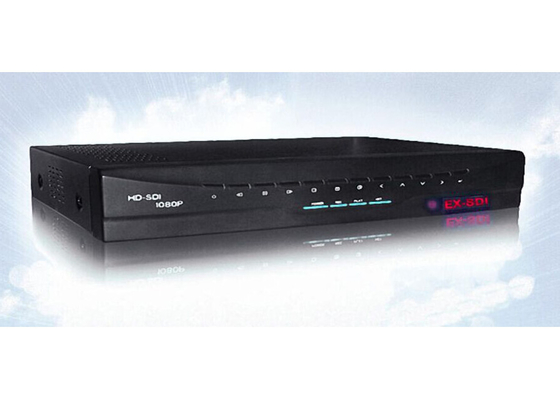

H.264 8Ch Digital Video Recorder For CCTV , Computer Video Recorder RS485
Product Features:
1. Playback Functions
Can realized by multiple criteria in searching video for local and network playback, support simultaneous
playback of multi-channel video, such as fast and slow motion, frame playback, and other playback mode.
Playback can display the accurate time of events.
2. camera control and Alarm
Sup port remote camera control: equipped with multi-channel audio alarm input interface, motion
detection, video loss, video masking, alarm function.
3. Communication Interface
USB2.0 high speed interface or the SATA interface, external multiple backup devices with standard Ethernet
interfaces, Plug-and-play under various network conditions.
4. Operation
Support front panel operation, IR remote control, mouse and many other methods, a simple and intuitive graphical interface.
5. Real-time monitoring
With composite video interface, supports TV, VGA, or HDMI output simultaneously.
6. Compression function
Using the H.264 video compression standard and G.711 Audio compression standard, maximum support
1920*1080 resolution code.
7. Recording function
Supports timing , alarm linkage, such as various recording modes, support SATA hard drive, and local hard S.MA.R.TR technology, equipped with USB interface for backup of local drive or network function.
Product Overview:
This products is a specially designed for video surveillance field designer of video coding and records of
products, combining H.264 of video compression, and big capacity hard disk storage, and TCP/IP network, and Embedded LINUX operating system and the other various advancedelectronic information technologies. It realize high quality, and low yards rate, long transmission reach 500 meters SDI signal of audio and video. Recording characteristics and outstanding system stability, powerful of network service greatly improve the ability of network data and remote control.
Specification:
|
Model |
8CH 1080P SDI EX-DVR 821008 |
|
|
System |
CPU |
Professional Industrial Processor Taiwan Grain GM8287/GM821008 |
|
Operation system |
Embedded Linux Operation System |
|
|
USB Interface |
3*USB2.0, Upgrade by USB flash(OTG) |
|
|
VGA Interface |
Support 1024*768,1280*720,1280*1024,1920*1080(Default) |
|
|
HDD Interface |
Max. 2 x SATA Device |
|
|
CVBS Output |
PAL (625TVL ,50 field/s )；NTSC (525TVL ,60 field/s ) |
|
|
Resolution |
Encode |
1080P @ 120FPS; 720P @ 240FPS |
|
Decode |
1080P @ 120FPS; 720P @ 240FPS |
|
|
Video |
Input |
SDI: 1080P 500M TRANSFER |
|
Output |
1 HDMI with Audio and 1 VGA, 1 Main BNC for D1 |
|
|
Audio |
Input |
4 RCA |
|
Output |
1 RCA |
|
|
Alarm |
Smart Function |
Video Loss: Default ON, Support |
|
External Alarm |
N/A |
|
|
playback |
Playback |
Local(8ch),Remote Device(8ch) |
|
Recording |
Compression |
H.264 High Profile |
|
Main(Recording) |
1080P(15 FPS ,Fixed @4096K ),720P (25FPS, Fixed @4096K )Max 4M |
|
|
Resolution |
||
|
Sub (Network)Resolution |
Default CIF @5FPS, Can set VGA(640*480), 512kbps Max 1M |
|
|
PTZ |
PTZ |
RS485 |
|
General |
Power Rating |
DC12V, 9.6W (Excluding HDD) |
|
|
Dimension |
352(W)x252(D)x71(H)mm |
