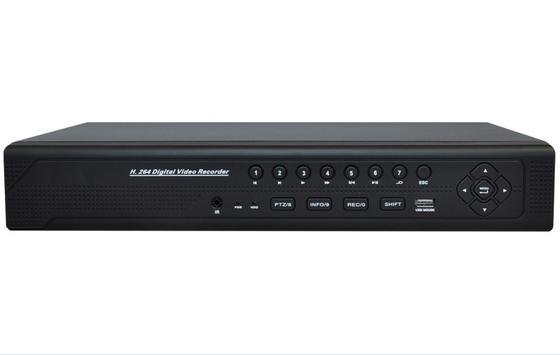

Security CCTV DVR System 32CH H.264 Hybrid Digital Video Recorder(HVR)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Security CCTV DVR System 32CH H.264 Hybrid Digital Video Recorder (Hybrid DVR=DVR + NVR) DR-H9532H
Feature:
l DVR/NVR 2 in 1, multi-mode input, support 24/32CH analog video encode, support pure HD network video input
l With XM cloud service, easy to achieve a variety of network penetration, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate
l H.264 High Profile compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
l Main stream and sub-stream encoding: Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
l Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android), support
l 3G dialing, WIFI module expansion
l Support multiple web browsers(IE, Chrome, Firefox, Safari);
l Support two USB2.0 ports, to achieve USB mouse, backup, burn, upgrades and other operations stably.
l Imitate Vista interface, similar to Windows operating style, easy to get started with powerful mouse right-click function
l Support TV, VGA and HDMI output simultaneously, VGA, HDMI HD 1080P output, overturn traditional monitoring thoroughly
l Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions,
l IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.
l With its own domain name service functions (ARSP), and one key to remote monitoring, monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
l Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes
l Support more than 20 languages (English, Finnish, French, German, Greek, Italian, Japanese, Polish,
l Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.), no nation boundaries
l Display flexibly, free to replace boot interface
Specification:
|
|
ITEM NO. |
DR-H9532H |
|
System |
Main processor |
Industrial embedded microcontroller Huawei Hass platform |
|
Operating system |
Embedded LINUX operating system |
|
|
|
System resource |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
Interface |
User interface |
support 16-bit true color graphical menu interface and mouse operation |
|
Display screen |
1/4/8/9/16/24/32 (under analog mode) |
|
|
Video |
Video standard |
PAL(625 lines, 50fps); NTSC(525 lines, 60fps) |
|
Image encode |
H.264(High Profile) |
|
|
Monitor quality |
Monitor: D1; VGA, HDMI: High definition (max. 1920*1080) |
|
|
Playback quality |
D1/HD1/CIF/QCIF |
|
|
Encode capability |
32CH CIF real-time |
|
|
Decode capability |
16CH CIF real-time |
|
|
Hybrid mode |
Only analog(DVR): 32*CIF Only IP(NVR): 16*D1/2*1080P+2*720P /1*1080P+1*720P+6*960H/8*720P |
|
|
Motion detection |
Zones: 192(16*12) detection zones, sensitivity: multi-level sensitivity (Only local channels) |
|
|
Audio |
Audio compression |
G711A |
|
Bidirectional talk |
support |
|
|
Record and playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local playback |
1~16CH playback, Under analog mode 32*CIF, up to 16CH playback (16*CIF@25fps) |
|
|
Video search |
Time/calendar/event/channel search |
|
|
Storage and back up |
Space occupation |
Video: CIF: 4~5G/day*channel, D1: 8~10G/day*channel; 960H: 12~20G/day*channel 720P: 20G~30G/ day*channel; 1080P: 30~40G/day*channel; audio: 691.2M/ day*channel |
|
Video storage |
Local HDD, Network |
|
|
Back up mode |
Network backup, USB portable HDD, USB imprint, SATA imprint |
|
|
Interface |

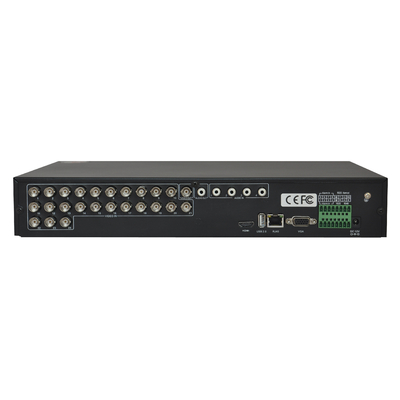

Video input |
32CH BNC(1.0Vp-p,75Ω) |
|
Video output |
2CH BNC(1.0Vp-p,75Ω), 1CH VGA, 1CH HDMI |
|
|
Loop output |
N/A |
|
|
Audio input |
4CH RCA(200-2800mV,30KΩ) |
|
|
Audio output |
1CH RCA (200-3000mV, 5KΩ) |
|
|
Alarm input |
8CH |
|
|
Alarm output |
1CH |
|
|
Network port |
RJ45 10M/100M |
|
|
PTZ control |
1 RS485, 1 RS232, support multi kinds of PTZ protocol |
|
|
USB port |
2*USB2.0 |
|
|
HDD port |
2 SATA ports (each max to 4TB) |
|
|
Wireless port |
3G, WIFI(extension via USB port) |
|
|
Other |
Power |
12V/4A |
|
Consumption |
<15W(not including HDD) |
|
|
Temperature |
0℃-＋55℃ |
|
|
Humidity |
10%－90% |
|
|
Atmosphere pressure |
86kpa－106kpa |
|
|
Dimension |
L370*W305*H65MM |
|
|
Weight |
3.4KG |
