16CH H.264 Standalone Digital Video Recorder DVR Support 4TB HDD
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | standalone dvr,h.264 dvr,network dvr |
||
|---|---|---|---|

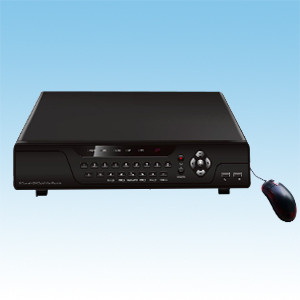

16CH H.264 Standalone Digital Video Recorder DVR Support 4TB HDD
The 16CH network dvr recorders support 16 channels playback at the same time. It is perfect for office, shop, factory cctv surveillance.
Features:
- 16CH H.264 network dvr recorder
- With network function
- Support dual-stream for all channels
- 16 channels playback simultaneously
- Support 2pcs 4TB 3.5" SATA hard disk
- Support multi-language
- Support mobile-phone remote surveillance
- With free CMS
- Support 4CH audio input and 16CH alarm input
Specification
| Model |
DM-7116V |
|
Video Compression Format |
H.264 |
|

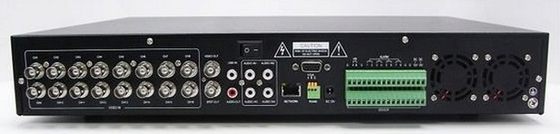

Video Input |
16 channels BNC |
|
Video Output |
1CH BNC, 1CH SPOT, 1CH VGA |
|
Audio Input |
4 channel RCA |
|
Audio Output |
1 channel RCA |
|
Multiplex Operation |
Live display, Playback, Recording, Backup, Network simultaneously |
| Playback |
16 channels simultaneously |
|
Display Mode |
1/4/9/16 |
|
Display Resolution |
PAL:D1(704*576); NTSC:D1(704*480) |
|
Recording Resolution |
PAL:D1(704*576),HD1(704*288), CIF(352*288) |
|
NTSC:D1(704*480),HD1(704*240), CIF(352*240) |
|
|
Recording Frame Rate |
PAL:D1@100fps,HD1@200fps,CIF@400fps |
|
NTSC:D1@120fps,HD1@240fps,CIFQ@480fps |
|
|
Recording Mode |
Timing, Motion Detection, Manual, Alarm |
|
Recording Quality |
Single channel adjustable |
|
Backup |
USB Flash disk, Movable hard disk, Network |
|
Alarm Input/Output |
16CH in/4CH out |
|
Alarm Linkage Recording |
Support |
|
Email Alarm |
Support |
|
SPOT Alarm Pop |
Support |
|
PTZ |
Supports PTZ preset ,Cruise and Control PTZ via PC |
|
PTZ protocol |
PELCO-D,PELCO-P |
|
HD Type |
2pcs 3.5" SATA Hard Disk |
|
HD Capacity |
Max 2TB |
|
Network Interface |
RJ45 10M/100M |
|
Network Protocol |
TCP/IP,PPPOE,DHCP,DNS,DDNS,UPNP,NTP |
|
IE Browser |
Support |
|
Recording file Play |
Special player |
|
Client Software |
Support |
|
CMS |
Support(One software for at most 50 DVR ) |
|
Dual-Stream |
Support (Main and secondary interchange) |
|
Multi-language OSD |
Yes |
|
SDK Package |
Support |
|
Mouse port |
USB2.0 |
|
Backup port |
USB2.0 |
|
IR Remote Control |
Yes |
|
User Authority |
Multi-level user authority distribution |
|
System Date |
Support Format Swift , Summer time |
|
Power Supply |
DC 12V/5A |
|
Operating Temperature |
0℃--＋50℃ |
|
Working Humidity |
10%--90% |
|
Size |
430(L)*345(W)*66(H)/mm |
DVR Menu (GUI)
Support Multi-language:
IE Viewing
The Network Standalone DVR records asopts kMEye App. for mobile surveillance:
Package Include:
- 1 x Digital Video Recorder/DVR

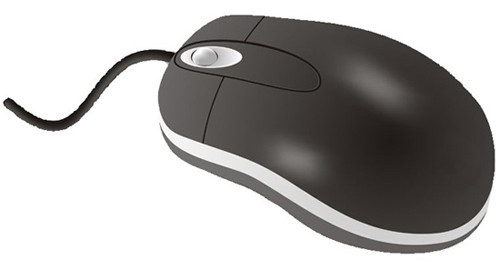

- 1 x Mouse
- 1 x Power Supply

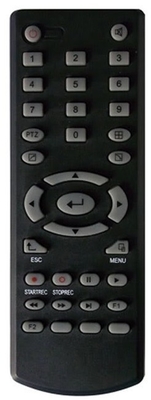

- 1 x IR Remote Controller
- 1 x User Manual
- 1 x CD for DVR
- Hard disk are not included
