P2P HDMI CCTV Security System H.264 8CH Digital Video Recorder 960P HD

I'm Online Chat Now
Certification
China China Camera Online Market certification
China China Camera Online Market certification
We sincerely appreciate all the time and efforts during these years by improving your products, for your kind customer service.

—— Fabio

The products we order are working very well,I will place more orders with this company.

—— Mario

Highly recommended! it is a really trustworth and reliable vendor, good job!Hope to do a longterm business!

—— Mac Jordon

Good company, high quality cameras,good communication skills!

—— Garry Brian

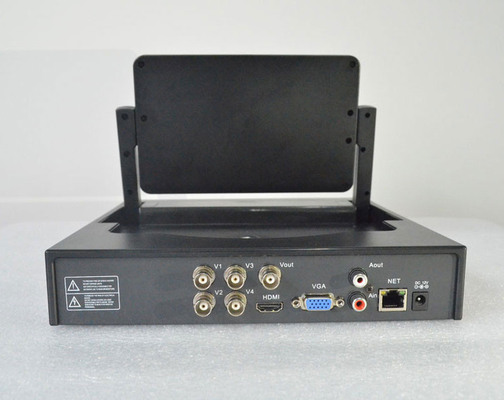

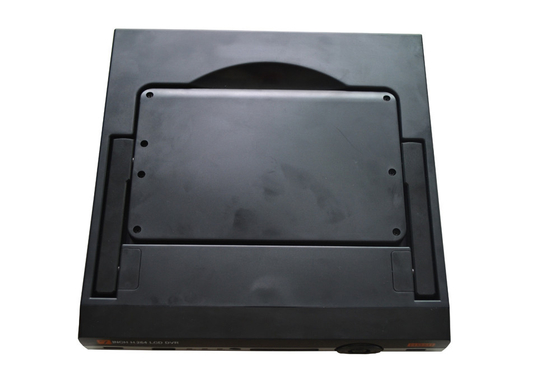

P2P HDMI CCTV Security System H.264 8CH Digital Video Recorder 960P HD

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  P2P HDMI CCTV Security System H.264 8CH Digital Video Recorder 960P HD Get Best Price

Product Details:
Place of Origin: China
Brand Name: Kimpok
Certification: EC/FCC/ROHS
Model Number: KP-DVR7108
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: Negotiation
Packaging Details: export packing standard
Delivery Time: 5 working days after received the payment
Payment Terms: L/C, T/T, PayPal
Supply Ability: 1000pcs per month
Detailed Product Description
Main Chip: Hi3515A Operating System: Embedded Linux
Audio Input: 2 RCA Interface CVBS Output: 8CH
Screen Output: 7 Inch Digital LCD(Resolution 800X480 ) USB Interface: 2 USB2.0 Interface
High Light:

4CH Digital Video Recorder

,

H.264 Digital Video Recorder



960H HD 7 Inch DVR P2P HD 8CH H.264 HDMI LCD DVR CCTV DVR Security System





Introduction;

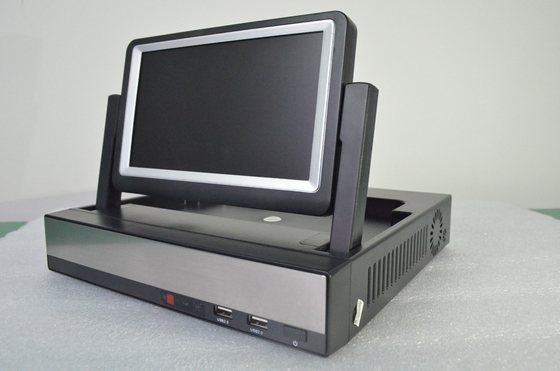

A great way to get started in increasing the security of your property is with this security surveillance set that comes with a 8 channel DVR with a 7 inch monitor and four cameras for instantly connection and monitoring. The 7 inch LCD monitor folds out from the top of the DVR to protect from damage when not in use but it is being used it can display up to four different feeds simultaneously and it can be controlled with the accompanying remote controller. Using H.264 video compression, the “Watch-Tower” records footage at a reduced bit rate nonetheless it still maintains a high quality, which results in good video footage that takes up less storage space. The standard video compression is H.264 and also it is one of the most commonly used formats for the recording, compression, and distribution of high definition video.







Specificaiton:





Model KP-DVR7108
Main Chip Hi3515A
Operating System Embedded Linux
Video Standard PAL/NTSC Optional
Video and Audio Input CVBS Output 8 CH
BNC interface(1.0Vp-p,75ohms)
Audio Input 2 RCA Interface
Voice Talkback 1 Voice Talkback Input
Mode Selection NVR Model or NVR and DVR Model
IPC input
(NVR model)
8CH D1  or 8CH 1080P
IPC Input
(Mixed Model)
4CH D1 , 4CH 1080P or 8CH 1080P
Viedo and Audio Output Screen Output 7 inch digital LCD(Resolution 800X480 )
CVBS Output 1 BNC Interface (1.0Vp-p,75ohms)
VGA Output Resolution 1 Interface 1920x1080,1280×1024,1280×720,1024×768,800×600 Optional
HDMI Output Resolution 1.3a Standard
1 Interface 1920x1080,1280×1024,1280×720,1024×768,800×600 Optional
Audio Output 1 RCA Interface
Video and Audio Encode Real-time Monitor Resolution D1
Video Coding Standard H.264/MPEG 4 AVC
Coding Resolution Mainstream EnEnEncode:D1,CIF/
960H,D1,CIF Optional (960H)
Auxiliary Stream EnEnEncode:CIF,QCIF Optional
Top EnEnEncode Capacity 2CH D1
Video Frame 1~25 Frame/PAL,1~30Frame/NTSC
Encode Rate control Stable Encode Rate or Optional
Video Bit Rate 48Kbps~2048Kbps/
48Kbps~3072Kbps(960H)
Bit Stream Composite Stream/Video Stream
Audio Encode G.711A
Audio Bit Rate 64Kbps
Dual Stream Support,Max CIF@6P
Play Back Support 8ch Play Back
Voice Talkback Support
Others P to P Support
Mobile Phone View Support 3G Mobile Phone
Dynamic Monitoring Each Frame Support 396 (22×18) Detection of Regional
Occluded Area Each Channel support 4 occluded areas
Hard Disk Drive HDD Interface 1SATA Max 2TB
Secuirity Protection Secuirity Protection Six digital password
Other Interface Net Work Interface 10M/100M Ethernet
USB Interface 2 USB2.0 Interface
Structure Screen 7" inch ditital LCD
Dimension 210mm*125mm*45mm(L*W*H)
Net Weight 0.62Kg(without HDD)
Electrical performance Power Supply DC 12V 4A
Working Temperature  0℃~+50℃
Storage Temperature  -20℃~+70℃
Working  Humidity 10%~90%
Power Dissipation 10W(without HDD)
