Product Details:
Payment & Shipping Terms:
|
Product Name: | Digital Color CCD Camera | Model: | BUC4-140C |
---|---|---|---|
Pixel Size: | 4.65μm×4.65μm | Filter: | R, G, B |
High Light: | low noise camera,progressive scan camera |

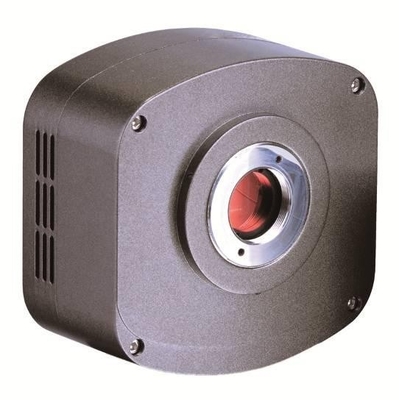

Digital Color CCD Camera , Usb2.0 Trinocular Microscope With Camera
Theory
BUC4 series digital cameras are CCD cameras. Real scientific CCD sensors are adopted and images and videos can be captured with high sensitivity and low image noise. With USB2.0 interface, C-mount, BUC4 series CCD cameras can be used for high precision image analysis of low light, bright field, dark field, fluorescence in life science and industrial applications. Microscope adaptor and connecting rings can be chosen to connect the digital cameras to any microscopes.
Specification
Model |
BUC4-140C |
Description |
USB2.0 colorful CCD 1.4MP digital camera |
Image Sensor |
1/2 inch, colorful 1.4MP Sony CCD ICX205AK |
Pixel Size |
4.65μm×4.65μm |
G Sensitive |
400mV |
Scan Mode |
Progressive Scan |
Filter |
R, G, B |
Max Resolution |
1360H × 1024V |
Frame Rate |
7fps@1360×1024 15fps@1360×1024(high-speed mode) |
Lens Interface |
Standard C-mount |
Low-speed Readout |
Yes |
White Balance |
Auto / Manual |
Exposure Control |
Auto / Manual |
Exposure Time |
1ms~60mins |
Image Output |
USB2.0, 480Mb/s |
Power |
USB2.0 Power Supply, 500mW |
Parameters Control |
Image size, Contrast, brightness, R.G.B gain, exposure time |
Software Function |
Image display, image processing, video |
Working Temperature |
0°C~60°C |
Storage Temperature |
-20°C~70°C |
Working Humidity |
10-90% |
Accessories |
Include C-mount, 2.5m USB cable, 1 CD with software and SDK., Manual |
Dimension |
100mm×81mm×48mm (length × width × height) |
Gross Weight |
480g |
Model |
BUC4-140M |
Description |
USB2.0 mono CCD 1.4MP digital camera |
Image Sensor |
1/2 inch, mono 1.4MP Sony CCD ICX205AL |
Pixel Size |
4.65μm×4.65μm |
G Sensitive |
400mV |
Scan Mode |
Progressive Scan |
Filter |
R, G, B |
Max Resolution |
1360H × 1024V |
Frame Rate |
7fps@1360×1024 15fps@1360×1024(high-speed mode) |
Lens Interface |
Standard C-mount |
Low-speed Readout |
Yes |
White Balance |
Auto / Manual |
Exposure Control |
Auto / Manual |
Exposure Time |
1ms~60mins |
Image Output |
USB2.0, 480Mb/s |
Power |
USB2.0 Power Supply, 500mW |
Parameters Control |
Image size, Contrast, brightness, R.G.B gain, exposure time |
Software Function |
Image display, image processing, video |
Working Temperature |
0°C~60°C |
Storage Temperature |
-20°C~70°C |
Working Humidity |
45%-85% |
Accessories |
Include C-mount, 2.5m USB cable, 1 CD with software and SDK., Manual |
Dimension |
100mm×81mm×48mm (length × width × height) |
Gross Weight |
480g |
Model |
BUC4-500C |
Description |
USB2.0 colorful CCD 5.0 Mega Pixel digital camera |
Image Sensor |
2/3 inch, Sony ICX282AQ |
Pixel Size |
3.4μm×3.4μm |
G Sensitive |
280mV |
Scan Mode |
Interlaced scanning |
Filter |
R, G, B |
Max Resolution |
2580H×1944V |
Frame Rate |
3fps@2580×1944 10 fps@1280×932 |
Lens Interface |
Standard C-mount |
Low-speed Readout |
Yes |
A/D conversion |
12 bit |
Anti-Amp control |
Yes |
White Balance |
Auto / Manual |
Exposure Control |
Auto / Manual |
Exposure Time |
0.1ms~60mins |
Image Output |
USB2.0, 480Mb/s |
Power |
USB2.0 |
Parameters Control |
Imagine size, bright, gain, exposure time, RGB |
Software Function |
Image display, image processing, video |
Working Temperature |
0°C~60°C |
Storage Temperature |
-20°C~70°C |
Working Humidity |
45%-85% |
Accessories |
Include C-mount, 2.5m USB cable, 1 CD with software and SDK., Manual, Aluminum case |
Dimension |
130mm×111mm×54mm (length × width × height) |
Gross Weight |
920g |
Model |
BUC4-800C |
Description |
USB2.0 colorful CCD 8.0 Mega Pixel digital camera |
Image Sensor |
1/1.8 inch, Sony |
Pixel Size |
2.2μm×2.2μm |
G Sensitive |
170mV |
Scan Mode |
Interlaced scanning |
Filter |
R, G, B |
Max Resolution |
3280H×2460V |
Frame Rate |
2fps@3280×2460 30fps@640×480 |
Lens Interface |
Standard C-mount |
Low-speed Readout |
Yes |
A/D conversion |
12 bit |
Anti-Amp control |
Yes |
White Balance |
Auto / Manual |
Exposure Control |
Auto / Manual |
Exposure Time |
0.1ms~60mins |
Image Output |
USB2.0, 480Mb/s |
Power |
USB2.0 |
Parameters Control |
Imagine size, bright, gain, exposure time, RGB |
Software Function |
Image display, image processing, video |
Working Temperature |
0°C~60°C |
Storage Temperature |
-20°C~70°C |
Working Humidity |
45%-85% |
Accessories |
Include C-mount, 1.8m USB cable, 1 CD with software and SDK., Manual, Aluminum case |
Dimension |
100mm×81mm×48mm (length × width × height) |
Gross Weight |
450g |
Package
BUC4 series CCD cameras are packed in aluminum cases, the package includes:
Digital camera(standard C-mount) |
1 |
2.5 meters USB cable |
1 |
CD(Driver, software) |
1 |
Manual |
1 |
Aluminum case |
1 |
Shell Dimension (unit: mm)
Sample Images
Advantages
1. Real scientific-grade colorful/mono CCD image sensor with high sensitivity and low image noise, no compression, no interpolation;
2. Perfect image quality and high dynamic range with the perfect detail;
3. High speed image preview and fast focus;
4. High-speed USB2.0 interface, up to 480Mb/s;
5. Support Windows XP / Vista / 7 / 8 / Mac / Linux peration System;
6. Support Directshow and Twain;
7. C-mount, 0.5X microscope adaptor and 30mm, 30.5mm connecting rings are optional;
8. Durable aluminum alloy shell.
Application
BUC4 series CCD cameras are mainly used for high precision quantitative analysis in low light, brightfield,
darkfield, fluorescence imaging of life science and industrial applications.
Universal product information
Place of Origin: | China |
Brand Name: | BestScope |
Certification: | ISO CE QS |
Model Number: | BUC4 |
The Commerce Item
Minimum Order Quantity: | One |
Price: | Negotiable |
Packaging Details: | According to the Requirements of Clients |
Delivery Time: | According to the order quantity |
Payment Terms: | T/T in advance |
