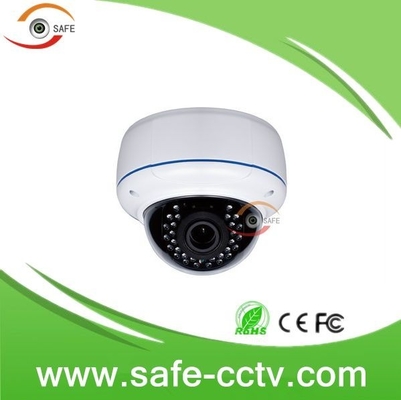

3.0 Megapixel WDR Vandal-Proof IR Network Dome Camera,ip cctv camera,network camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
3.0 Megapixel WDR Vandal-Proof IR Network Dome Camera,ip cctv camera,network camera
Features:
◎ 1/3” 3.0 Megapixel Progressive Scan Aptina WDR CMOS sensor
◎ Ti DaVinci Series DSP
◎ H.264 & MJPEG dual-stream encoding
◎ Max 20fps @ 3.0MP (20480×1536)
◎ Dual encoding streams supported
◎ 2.8~12mm /F1.4 Manual lens
◎ Built-in 1/1 alarm in/out
◎ 30pcs Φ5 IR lights ,Max IR Distance :20m
◎ True WDR 120dB
◎ True Day/Night ICR
◎ Micro SD memory, IK10, PoE
◎ Built-in Web server, NVR, CMS
◎ IP66 all-environments protection
Specification:
|
Model |
SA-HD52RC83-DE |
SA-HD52RC83-DEP |
SA-HD52RC83-D |
SA-HD52RC83-DP |
|
|
General |
|||||
|
processor |
DaVinci High Performance DSP of TI |
||||
|
Operating System |
Embedded LINUX |
||||
|
Resource |
Simultaneous remote monitoring, local recording and remote control |
||||
|
User Interface |
WEB, CMS, NVR |
||||
|
Camera |
|||||
|
Image Sensor |
1/3” 3.0Megapixel Progressive Scan Aptina WDR CMOS Sensor |
||||
|
Effective Pixels |
2048 (H)×1536(V) |
||||
|
Electronic Shutter |
1/5s to 1/50,000s |
||||
|
Mini. Illumination |
Color:0.1Lux/F1.2 ; B/W:0.01Lux/F1.2 ;0Lux( IR ON) |
||||
|
Signal Noise Ratio |
>50dB |
||||
|
WDR Dynamic Range |
WDR (120dB) |
||||
|
Gain Control |
Auto/Manual |
||||
|
White Balance |
Auto/Manual |
||||
|
Day/Night Mode |
Auto, dual IR-Cut filter |
||||
|
Lens |
2.8～12mm /F1.4 Manual lens |
||||
|
Max IR Distance |
20m, 30pcs Φ5 IR lights |
||||
|
Video |
|||||
|
Video Compression |
H.264/MJPEG Optional |
||||
|
H.264 Encode Type |
H.264 Baseline/H.264 Main Profile/H.264 High Profile Optional |
||||
|
Image Resolution |
3.0Mp(2048 × 1536 ) /1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) |
||||
|
Encoding Speed |
Main Stream: 3.0Mp /20 fps ；1080P/720P(1~25fps/30fps) |
||||
|
Extra Stream: D1/CIF:(1~25fps/30fps) |
|||||
|
Video Bit Rate |
Main Stream:500Kbps~12Mbps Sub Stream:100Kbps~6Mbps |
||||
|
Video Format |
PAL/NTSC |
||||
|
Audio |
|||||
|
Audio Compression |
N/A |
G.711a/G.711u/RAW_PCM Optional |
|||
|
Audio Bit Rate |
N/A |
G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps) |
|||
|
Audio Input |
N/A |
1-channel 3.5mm audio interface MIC IN/Line IN |
|||
|
Audio Output |
N/A |
1-channel 3.5mm audio interface (line level,600Ω) |
|||
|
Network |
|||||
|
Ethernet |
RJ-45 (10/100Base-T) |
||||
|
Network Protocol |
IPv4/IPv6,RTSP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPoE,SMTP |
||||
|
Common Features |
One button Reset, Prevent Flicker, Dual-stream, Heartbeat, Password Protect, Video cover, Motion Alarm |
||||
|
ONVIF |
ONVIF Ver. 2.3 |
||||
|
Max User Access |
10 users |
||||
|
Smart phone |
Iphone , Ipad ,Android, |
||||
|
Remote Operation |
Monitor, System setting, Log information, Maintenance & Upgrade |
||||
|
Auxiliary lnterface |
|||||
|
RS485 |
One Reset Button(Hold on 3 seconds at least) |
||||
|
Reset Input |
PTZ Control |
||||
|
Memory Slot |
N/A |
Micro SD Card, Max 32GB |
|||
|
Alarm Input |
N/A |
1-channel input, Normally Open/Normally Close modes adjustable |
|||
|
Alarm Output |
N/A |
1-channel output,, 120VAC 1A/24VDC 1A |
|||
|
Video Output |
N/A |
1Vp-p Composite Output(75Ω/BNC) |
|||
|
Environmental |
|||||
|
Power Supply |
DC12V |
||||
|
P0E |
N/A |
IEEE802.3af |
N/A |
IEEE802.3af |
|
|
Ingress Protection |
N/A |
||||
|
Power Consumption |
<10W |
||||
|
Operating Environment |
-40ºC ~ +60ºC, Humidity less than95%(Non-condensing) |
||||
|

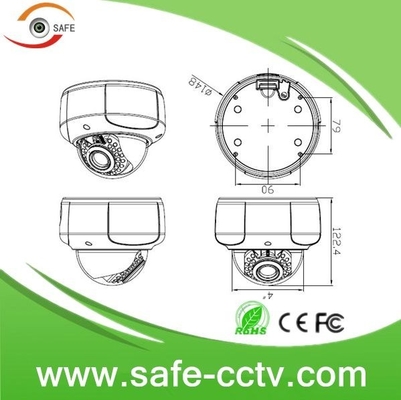

Dimensions(mm) |
148mm×148mm×121.5mm |
||||
|
Weight(kg) |
0.77Kg |
||||
