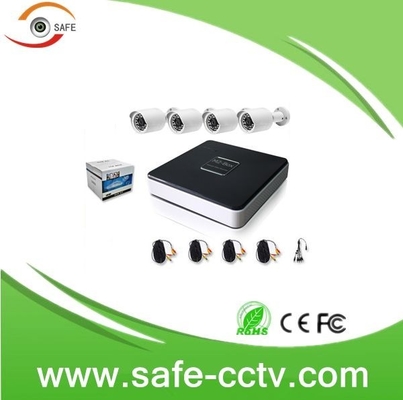

4CH Mini DVR KIT With 850TVL CMOS Camera,h 264 4ch dvr,security cctv camera system

Model

SA-Z0804DS-C3

DVR Feature : DVR Model: SA-Z0804D

P2P function (IE)

Using Device ID and password to login www.vssweb.net,;
Realize remote monitoring, playback and control like IE Web login;
No need any network, IP setting, easy for end user to use network function.

Web 2.0 function

Support multi brower, like: chrome, firefox, safari etc;
Realize remote display, playback.

System

Operation System

Embedded LINUX

Pentaplex function

Live monitoring, recording, playback, backup & remote access

Control Mode

USB mouse, Network

Video

Input

4 CH. BNC

Output

1 VGA,1 CVBS, BNC (1.0Vp-p,75 ohms)
1920×1080,1280×1024,1280×720,1024×768,800×600 Resolution

Standard

PAL (625line, 50f/s) NTSC (525line, 60f/s)

Audio

Input

1 CH. RCA

Output

1 CH. RCA

Two-way Talk

Reuse audio input/output channel 1

Display

Resolution

PAL:D1(704× 576)；NTSC: D1 (720×480)
D1/CIF/QCIF optional

Privacy Masking

Four zones for privacy masking for each channel

Recording

Video/Audio Compression

H.264/G.711A

Image Encoding

Adjustable encoding quality, variable code stream/fixed code stream

Dual Stream

Support

Recording Resolution

4 D1

Recording Mode

Manual, auto, motion detection, stop

Time bar

Support

Video Detection & Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips

Motion Detection

396 (22×18) detection zone, variable sensitivity levels

Capture

JPEG capture

Playback & Backup

Playback Channel

1/4 CH. 1/4/9CH.

Backup Mode

USB, HDD, Network Backup

Network

Ethernet

1 RJ-45 port (10M/100M)

Network Functions

DHCP, PPPOE, DDNS, SMTP,SNTP, FTP, UPnP, TCP/IP, UDP, HTTP, RTP/RTSP

Remote Operation

Monitoring, PTZ control, playback, system setting, file download, log information

Smart Phone

iPhone , iPad, Android, Blackberry, Windows Mobile

Hard Disk

Hard Disk

1 SATA ports, Up to 4TB

HDD Management

Hard disk hibernation technology, HDD faulty alarm & raid

Auxiliary Interface

USB Interface

2 USB 2.0 ports

Environment

Power Supply

DC12V/2A

Power Consumption

10W (without HDD)

Working Environment

0℃—＋45℃/10%－90%RH

Dimension(W*D*H)

215x215x46mm(W×D×H)

Weight

0.8Kg (without HDD)

Installation

Desk type

Camera Feature

Camera Model

KD-CW19RQ85-C

Image Sensor

1/4" CMOS Sensor; 850TVL

S/N Ratio

≥52dB

Video output

1.0Vp-p, 75Ω Composite, BNCx1

Minimum illumination

0 LUX(IR ON)

Sync system

2:1 interlace internal Sync.

Shutter

1/50-1/100,000S

LED

24 PCS ∮5

IR Distance

10m

Lens Mount

lens 3.6/6mm

Operating Temperature

Indoor: -20 º C to 50 º C

Power

12V DC 50/60Hz 300mA

Packing List

1X5CH Power Distribution Wire

1X Special Camera Power

4XSpecial Camera Bracket

4x18m BNC Wire
