Material: | Metal | Color: | White |
---|---|---|---|
IR: | ¢5X24pcs LED | IR Distance: | 20M |
Lens: | 3.6mm | Weight: | 600g |
Waterproof: | IP66 | Size: | 92mm X 62mm X 58mm |
High Light: | HD AHD Camera,high definition cctv camera |

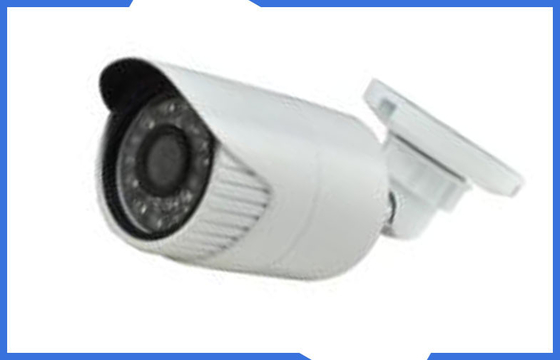

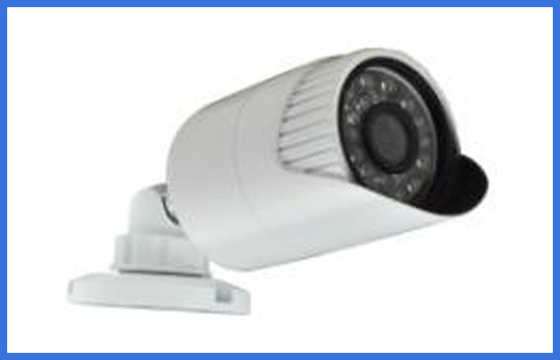

1/3" Sony IMX238 CMOS Sensor AHD CCTV Camera 1.3 Megapixel With 20M IR Distance
Quick Detail:
◆ 1/3" Sony IMX238+NEXTCHIP2431H 1.3 Megapixel CMOS Sensor
◆ 1500TV Lines Low illumination 960P: 1280 * 960, at 30fps
◆ Waterproof IR Bullet Camera
◆ IR LED: ¢5X24 pcs, IR Range: 20M
◆ Lens: Board Lens 3.6mm
◆ Water Resistance: IP66
◆ 3-Axis Cable Built-in Bracket
◆ Size: 92mm x 62mm x 58mm
◆ Weight: 600g
Features:
1. Uses high performance 1/3 "CMOS image sensor;
2. BNC interface,support 75-3 coaxial-cable lossless,transmission is up to 500 meters;
3. Real-time transmission, zero delay;
4. Supports AHD HD and SD output analog switch;
5. IR-CUT day and night switching;
6. Supports OSD menu to adjust the parameters (optional);
7. Infrared night vision distance: 10-30M.
Applications:
Applicable to financial services, supermarkets, telecommunications, government, schools, airports, factories, hotels and other places HD quality requirements
Specifications :
Camera lens | Standard 3.6mm (6mm/8mm/12mm optional) |
Image sensor | 1/3" IMX238+NEXTCHIP2431H,1.3 Megapixel CMOS Sensor |
Resolution | The PAL/NTSC:AHD-M definition (TVL) equivalent to HD 960P IP camera |
Minimum illumination | Color: 0.01Lux@ (F1.2, AGC, ON), 0 Lux with IR; Black and white: 0.001Lux@ (F1.2, AGC ON), 0 Lux with IR |
Video standards | Follow AHD and CVBS standard |
Electronic shutter | 1/50 (1/60) seconds to 1/100000 seconds |
OSD menu | optional |
Infrared distance | 10-50 M |
Maximum transmission distance | Common 75-3 coaxial-cable transmit 500M |
SNR | More than 58dB |
The synchronization system | Internal synchronization |
Type of lens | Manual / DC / video |
Shutter / AGC | Automatic / manual |
White balance | Automatic white balance |
Day and night mode | Automatic / black and white / color |
Synchronous mode | Internal synchronization |
Video output | 1 channel AHD HD signal/standard definition CVBS(Switchable) Composite1Vp-p/750hms |
Power input | DC12V/1A |
Working temperature | -10 degrees C-60 degrees C |
Working humidity | Humidity is less than 90% |
Power | Less than 6W (IR LED not opened), less than 10W (IR LED on) |
