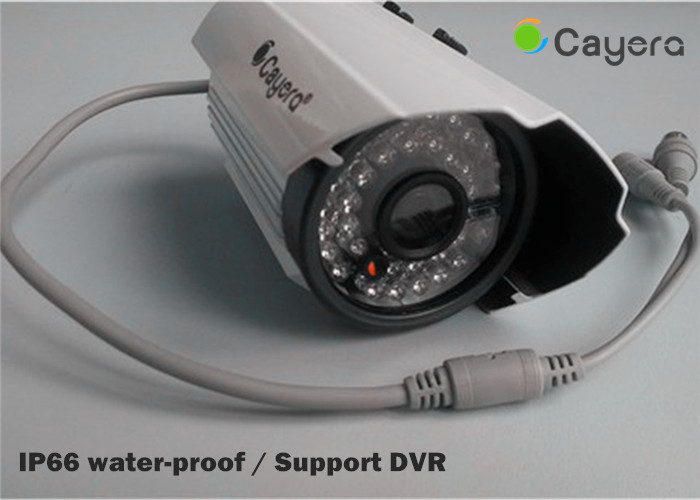

IP66 Outdoor CCTV Camera , 960P 1/3" CMOS Low Illumination Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Minimum Illumination: | 0.01Lux (0Lux IR On) | Image Sensor: | 1/3" 1.3MegapixelCMOS(NVP2431+IMX238) |
|---|---|---|---|
| White Balance: | Automatic | Effective Pixels: | 1280(H)×960(V) |
| Video Frame Rate: | PAL: 25fps/960P NTSC: 30fps/960P | IR Length: | 30m |
| High Light: | cctv surveillance cameras,hd analog cctv camera |
||
IP66 Outdoor CCTV Camera , 960P 1/3" CMOS Low Illumination Camera
Features:
- Support digital wide dynamic range function
- Advanced engineering design, cable built-in bracket, three axis rotation, high reliability
- IP66 waterproof design, high reliability
- 30M wired IR
- Support IE,mobilephone and HDEYE view
- 1 channel BNC HD AHD high definition video output
- Support mobile phone and computer monitor
- Support ICR, infrared filter automatically switch, automatic color turn black function,
- day and night monitoring
Pay attention
● Be sure of power supply at DC12V±1V
● Connect cables according to instruction,wrong con nection may
Cause malfunction and/or damage tothe cam era
● do not allow the camera to be subjected tostrong impacts or
shocks the camera could be damaged by improper handing or storage
● Do not install at extreme warm or cold place
(Recommended operation:-10℃-50℃)
● Never attempt to disassemble or modify the camera
● if an abnormality should happen to occur,immediately
turn off the power and consult your dealer
|
SPECIFICATIONS |
|
|
Product Type |
AHD Camera |
|
Image Sensor |
1/3" 1.3MegapixelCMOS(NVP2431+IMX238) |
|
Effective Pixels |
1280(H)×960(V) |
|
Horizontal Resolution |
1280H(130W) |
|
Video Frame Rate |
PAL: 25fps/960P NTSC: 30fps/960P |
|
Electronic Shutter |
1/50(1/60)-1/100,000sec |
|
Minimum Illumination |
0.01Lux (0Lux IR on) |
|
Synchronization |
Internal |
|
TV System |
PAL/NTSC |
|
S/N Ratio |
More than 69dB (AGC Off) |
|
Video Output |
1-channel BNC HDAHD high definition video output |
|
AWB |
AUTO |
|
BLC |
AUTO |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D/3D |
|
IR Length |
30m |
|
Lens |
3.6mm |
|
Power Supply |
DC12V±10% |
|
Working Environment |
-10°C~+60°C, Less than 90% RH |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
