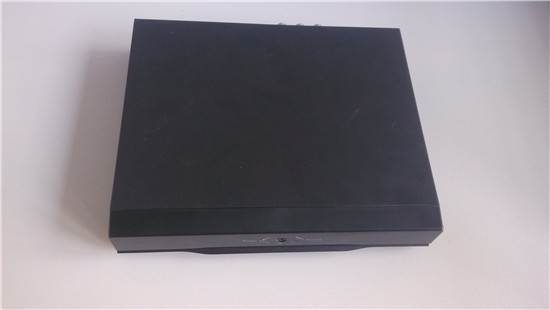

960P HDD H. 264 4 Channel digital video recorder NVR Support HDMI , VGA output , Onvif
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Digital Input: | 4CH 960P | Video Mode: | Manual> Alarm> Motion Detection> Timing |
|---|---|---|---|
| HDD: | 1 SATA （3TB） | Onvif: | Support 2.0 |
| Motion Detection: | Support | PTZ Control: | Support |
| High Light: | 4 channel nvr recorder,digital hdd recorder |
||
960P HDD H. 264 4 Channel digital video recorder NVR Support HDMI , VGA output , Onvif
Product advantage :
- Powerful network, a network cable, linkage, all over the world can easily realize large-scale monitoring management
- Support HDMI, VGA output at the same time: the most support four-way real-time synchronous playback, HDMI, VGA output resolution up to 1080 bottles, is monitoring the picture more clearly
- Support multiple images at the same time play: support multiple images segmentation under different channel previews and playback
- Contracted design more fashionable
- Polyhedral cooling hole, significantly enhance the heat dissipation performance of the product, the system more stable
- Remote access phone support, implementation in the mobile terminal on the monitor screen and control PTZ
Product Features:
- Compression algorithm ideal: H. 264 High Profile.
- Main and Sub Stream: Dual Stream, Main stream is for local record, sub stream is for network transmission
- Support digital zooming under preview and playback modes
- With ONVIF protocol, can connect the ONVIF IP camera directly, also can by IE and CMS
- Mobile monitor: Support iPhone, Windows Mobile, BlackBerry, Symbian, Android mobile monitor
- Display: Support TV, VGA, HDMI output at the same time
- Can connect IP camera, IP speed dome camera and DVS; Support Onvif protocol
- Multi-Language selectable: English, Spanish, Italian, French, Russian, Persian, Japanese, Chinese, Traditional Chinese, Polish, Thai, Hebrew, Dutch, Kazak
- similar WINDOWS operating style, powerful right button menu function of mouse for easier use
SPECIFICATIONS
|
Performance Parameters |
||
|
System |
Main processor |
Hi3515A |
|
Screen display |
1/4 |
|
|
Video |
Video standar |
PAL(625TVL,50 Fields / sec. ；NTSC(525TVL,60 Fields / sec. ) |
|
Video quality |
Monitor :D1；VGA: HD；HDMI:HD |
|
|
Coding capacity |
1080P/720P/960H/D1/HD1/CIF/QCIF |
|
|
Digital input |
4*960P |
|
|
Motion Detection |
Each screen can be set to 192 (16 × 12) detection area; multi-level sensitivity can be set |
|
|
Video playback |
Video mode |
Manual> Alarm> Motion detection> timing |
|
Local Playback |
1ch |
|
|
Video inquiry |
Point-in-time retrieval, calendar search, event search, channel search |
|
|
Interface |
Video input |
No |
|
Video output |
1ch BNC output,1ch SPOT output,1ch VGA output, 1ch HDMI output(1920*1080P) |
|
|
Audio input |
1ch RCA |
|
|
Audio output |
1ch RCA audio output |
|
|
Alarm input |
NO |
|
|
Alarm output |
NO |
|
|
Network interface |
RJ45 10M/100M/1000M |
|
|
PTZ control |
One RS485 ptz control interface |
|
|
USB interface |
2*USB interface |
|
|
HDD |
1 SATA (3TB) |
|
