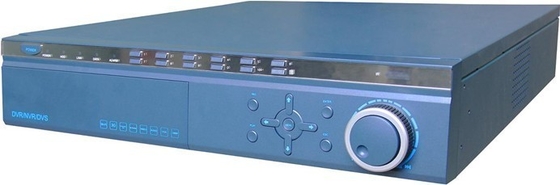

16 Channel 1080P H.264 hd digital video recorder Support HDD, U disk, USB mobile HDD

Large Image : 16 Channel 1080P H.264 hd digital video recorder Support HDD, U disk, USB mobile HDD Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	BOSCOM
Model Number:	BS-9916FMD

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	1PCS 44045090MM
Delivery Time:	5 days
Payment Terms:	T/T, Western union, Paypal
Supply Ability:	1000

Contact Now

Detailed Product Description

High Light:

hd digital video recorders

hd dvr recorder

16 Channel 1080P H.264 hd digital video recorder Support HDD, U disk, USB mobile HDD
Functions: HDMI (1080P), 3G, WIFI.
Windows style operation system.
Novel Appearance: adopt brand new design idea and fashionable blue color as the main color.
Recording Resolution: 16ch full D1
Novel Playback Mode: skip decode, average decode, full decode.
Backup Way: support U disk, USB mobile HDD, USB-RW, SATA-RW, network
With built-in DDNS server which realizes network monitoring easily.
Support preview and playback image zooming function.
Mobile Surveillance: support all kinds of 3G mobile phone surveillance.
Language: support 26 kinds of languages.

Adopts electric circuit protection design which effectively avoid breakdown by static electricity and lightning. The unique triple Watchdog Timer function ensures the stability of the DVR.

Specifications:

Series		E9900 Series
Model Number		BS-E9916FMD
Operating System		LINUX operating system windows style
Image Code Control		H.264
Dual Stream		Every channel can set
Video Standard		PAL/NTSC
Monitoring Image Quality		D1(704*576)
Image Dynamic Detection		Each screen can detect 396(22×18)detection areas and set 6-level sensitivity
Playback Image Quality	PAL	16ch D1 (704×576) 400 fps
	NTSC	16ch D1 (720×480) 480 fps
Region Cover		Every channel can set 4 cover regions
Recording Mode		Support manual , auto, dynamic detection, alarm trigger
Recording Playback		Support 1ch to 16ch playback simultaneously
Video Bit Rate		48Kbps-2048Kbps, support user-defined, MAX 2048Kbps
Bit Stream Type		Composite stream/video stream
Audio Compression Standard		ADPCM
Audio Bit Rate		64kbps
Backup Way		Support HDD, U disk, USB mobile HDD, USB burner, SATA burner, network storage and backup
Operation Way		Mouse, remote control, front panel button, control keyboard operation
Local Login		User name and password
Recording Storage		Local HDD, network
External Ports	Video Input	16ch BNC
	Loop input	16ch BNC
	Audio Input	16ch RCA
	Voice Talkback Input	1 RCA port, the same channel as the first channel of the audio input
	Video Output	2ch BNC, 1ch VGA (Resolution : 800×600, 1024×768,1280×1024, 1440×900 optional), 1ch HDMI
	Audio Output	1ch RCA
	Network Port	1 RJ45,10M/100M/1000M self-adaptive LAN port
	RS485 Port	Full duplex standard 485 port, support 19 kinds PTZ protocol
	USB Port	2 USB 2.0 ports(one is on the front panel, one is on the rear panel)
	Alarm Input	16ch
	Alarm Output	4ch
	HDMI Port	1 standard HDMI port
	Wireless Port	3G/WIFI
HDD	HDD Port	8 SATA HDD ports
	Max Capacity	Every port MAX support 2TB HDD
Mobile Surveillance		Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) 3G mobile phone
Power Supply		ATX 110-240V ～ 300W 50-60 Hz
Consumption		≤40W (without HDD)
Operation Temperature		-10℃-＋55℃
Operation humidity		10％-90％
Dimension		Equipment: 440mm×450mm×90mm, Packing: 539mm×530mm×225mm.
Weight(without HDD)		N.W. 7.71Kg, with packing 10.16Kg
Carton		Size: 555mm×545mm×470mm, Weight: 21.75Kg 2 pcs in a carton.
Installation Way		Desktop installation
