Exmor CMOS Black Full HD Resolution Zoom CCTV Camera 1.31 Megapixels E-FLIP / Nega Art F1.4 to 2.6

large.img.alt
small.img.alt

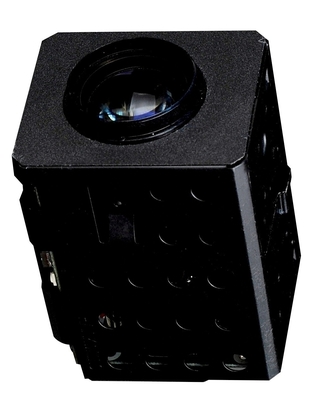

Large Image :  Exmor CMOS Black Full HD Resolution Zoom CCTV Camera 1.31 Megapixels E-FLIP / Nega Art F1.4 to 2.6 Get Best Price

Product Details:
Place of Origin: China
Brand Name: Hankwang
Certification: FCC ROHS CE
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Delivery Time: 7-15working days
Payment Terms: T/T in advance westem union L/C
Supply Ability: 30000-50000PCS/MONTH
Contact Now
Detailed Product Description
IMAGE SENSOR: 1/3-type Exmor CMOS Number Of Effective Pixel: Approx. 1.31 Megapixels
S/N Ratio: More Than 50dB Electronic Shutter Speed: 1/50 To 1/10,000s, Total22steps
Focusing System: Auto, One-push AF, Manual, IntervalAF, Zoom Trigger AF Backlight Compensation: Yes
High Light:

cctv zoom camera

,

high zoom camera



Exmor CMOS Black Full HD Resolution Zoom CCTV Camera 1.31 Megapixels E-FLIP / Nega Art F1.4 to 2.6


 Main Feature:


  1. 1/3-type Exmor CMOS(1.31 Megapixels)

  2. 16X optical zoom(F1.4 to 2.6)

  3. Full HD resolution

  4. White balance,BLC,Wide-D

  5. 3D-NR(Noise reduction)

  6. Spherical privacy zone masking

  7. E-Flip,Picture Freeze



Specification:


CAMERA　HKZ-166AB
SENSOR		Type1/3-type Exmor CMOS
Number of
effective
Pixel		Approx. 1.31 Megapixels
Image size(HxV)1280x720,
Lens16x optical zoom
f=5.6mm(wide) to 90.0mm(tele)
F1.4 to 2.6
Angle of View48.3(wide end) to 3.1(tele end)
Minimum Object distance500mm(wide end) to 1000mm(tele end) (Default:500mm)
Sync systemInternal
Minimum illumination(50%)1.7lx(F1.6, ICR off), 0.3lx(F1.6, ICR on)
S/N ratioMore than 50dB
Signal System720p/60, 720p/50, 720p/30, 720p/25
Video outputHDDigital: Y/Cb/Cr 4:2:2 via LVDS and TTL
(Signal format conforms to SMPTE296M)
Camera control interfaceVISCA(CMOS 5V level), Baud rate:9.6Kbps, 19.2Kbps, 38.4Kbps, Stop bit:1bit
Electronic shutter speed1/50 to 1/10,000s, total22steps
White balanceAuto, ATW, Indoor, Outdoor,One-push, Manual
GainAuto/Manual(-3dB to +28, +2dB step/total 16 steps)
Max. Gain Limit(+6dB to +28dB, +2dB step/ total 12 steps)
AE controlAuto, Manual, Priority mode( shutter & Iris Priority),
Bright, EV compensation,
Focusing systemAuto, One-push AF, Manual, IntervalAF, Zoom Trigger AF
Backlight compensationYes
Aperture control16 steps
Wide-DYes(On/Off)
Digital outputYes
Auto ICRYes
Spherical privacy zone maskingYes
Noise reductionYes(On/Off) (Level 5 to 1)
Picture effectsYes(E-FLIP,Nega Art, Black & White, Mirror Image)
Title displayYes(20 characters/line)
Camera mode displayYes
Key switch controlYes(TELE/WIDE/NEAR/FAR/MENU)
General　
Storage temperature-20C to +60C
Storage humidity20% to 95%
Operating temperature-5C to 60C
Operating humidity20% to 80%
Power requirements6.0V to 12.0V DC
Power consumption4.5W(zoom/focus active)


Exmor CMOS Black Full HD Resolution Zoom CCTV Camera 1.31 Megapixels E-FLIP / Nega Art F1.4 to 2.6 0
