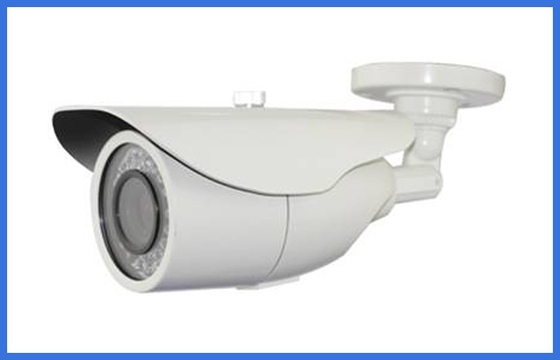

IR-Cut 960P 1/3" IP66 IR Bullet IP Camera CMOS IP CCTV Camera ONVIF2.0 with OSD
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Aluminium Alloy | IR: | ￠5X24pcs LED |
|---|---|---|---|
| IR Distance: | 20M | Lens: | 3.6MM |
| Waterproof: | IP66 | Sensor: | 1/3" Low Illumination 1.3 Mega Pixels CMOS |
| Resolution: | 960P,1280*960 | Weight: | 0.8kg |
| Color: | White | ||
| High Light: | ip cctv camera systems,hd cctv camera |
||
IR-Cut 960P 1/3" IP66 IR Bullet IP Camera CMOS cctv camera ONVIF2.0 with OSD
Quick Detail:
◆ 1/3" Aptina Low Illumination 1.3 Mega Pixels CMOS,Dual Stream: 960P/D1,
◆ Image Resolution: Max: 1280*960,Frame Rate: 30fps(1280*720), 22fps(1280*960)
◆ Waterproof IR Bullet IP Camera, IP66
◆ IR LED: ￠5X24pcs, IR Range: 20M
◆ Lens: Board Lens 3.6mm/F2.0 (2M pixel)
◆ Video Output: 1 x RJ45 port
◆ Supports Onvif 2.0
◆ PNP(Plug and Play), support smart phone & tablets
◆ OSD, Motion Detection, Remote View and Control, IR-Cut
◆ Working Temperature: -10℃~ +60℃
◆ Size: 175mm x 69mm x 55mm
◆ Weight: 580g
Specifications :
| Name | 960P HD IR Network Camera |
| Sensor Type | 1/3" Progressive Scan CMOS |
| Function | Electronic zoom function, wide dynamic function |
| Image Compression Processor | Dual-core 32-bit DSP, pure hardware compression, watchdog, embedded RTOS design |
| Infrared parameters | IR distance: 20 meters |
| Illumination | Color: 0.1 lux, black and white: 0.5 lux, 0 Lux with IR |
| 3D noise reduction | Support |
| Shutter | 1/50 (1/60) seconds to 1/100, 000 sec |
| Shot | Standard 3.6mm fixed iris lens (3.6mm, 6mm, 8mm optional) |
| Lens Interface Type | M12 interfaces, interchangeable lenses |
| Day & Night Mode | IR CUT dual filter switch |
| Video compression standards | H.264 |
| Video compression technology | Dual stream compression technology, including local watch streaming, remote viewing stream, stream watch phone |
| Compression output rate | 32Kbps ~ 2Mbps |
| Resolution | Main stream: 960P (22fps), 1280 × 960 full-time; Sub stream: D1, CIF full real-time; |
| Image parameter settings | Brightness, contrast, hue, saturation, adjust image quality level |
| Support Agreement | RTSP, FTP, PPPoE, DHCP, TCP / IP, HTTP, UDP, RTP / RTCP, UPNP, SMTP, SIP, DDNS, DNS |
| Interface Protocol | ONVIF protocol support |
| Intelligent Alarm | Motion Detection |
| Regional Shield | Support |
| Audio Interface | 1 input, 1 output (RCA) |
| Communication Interface | 1 RJ45 10M/100M adaptive Ethernet port. |
| Working temperature and humidity | -10 degree ~ 60 degree 90% RH |
| Power Supply | DC 12V/2.0A |
| Power Consumption | <20W |
| Protection class | No |
| Camera Weight | 1Kg |
Description:
1. High-performance processing chip SOC, reliable, low power consumption
2. Using H.264 video encoding technology, high compression ratio, high image quality
3. Support for high-definition resolution 960P (1280 * 960 30 frames)
4. The client software can record multi-point monitoring center alarm functions
5. Optional wireless networking support WIFI/802.11b/g
6. A complete network protocols, built-in WEB, support IE browser, configuration upgrade
7. Supports static IP, dynamic IP (DHCP), Dynamic DNS (DDNS) to resolve
8. Support PTZ control, alarm I / O, two-way intercom, two-way audio input and output
9. Recording images to support a variety of media player software
10. Support mobile remote monitoring, compatible with a variety of smart phone operating platform
11. Support Abnormal automatic recovery, network outages can be automatically re-connect
12. The clock time is not lost after power and support network for the time function (NTP)
13. Supports dual stream transmission, support WIFI network
14. IR distance of 50 meters, IP66 waterproof rating, with ICR switching device
2. Using H.264 video encoding technology, high compression ratio, high image quality
3. Support for high-definition resolution 960P (1280 * 960 30 frames)
4. The client software can record multi-point monitoring center alarm functions
5. Optional wireless networking support WIFI/802.11b/g
6. A complete network protocols, built-in WEB, support IE browser, configuration upgrade
7. Supports static IP, dynamic IP (DHCP), Dynamic DNS (DDNS) to resolve
8. Support PTZ control, alarm I / O, two-way intercom, two-way audio input and output
9. Recording images to support a variety of media player software
10. Support mobile remote monitoring, compatible with a variety of smart phone operating platform
11. Support Abnormal automatic recovery, network outages can be automatically re-connect
12. The clock time is not lost after power and support network for the time function (NTP)
13. Supports dual stream transmission, support WIFI network
14. IR distance of 50 meters, IP66 waterproof rating, with ICR switching device
Applications:
Applies to family, community, roads, warehouses, underground parking, bar, pipe, schools, engineering and other low light or no light environments and require high-quality sites.
