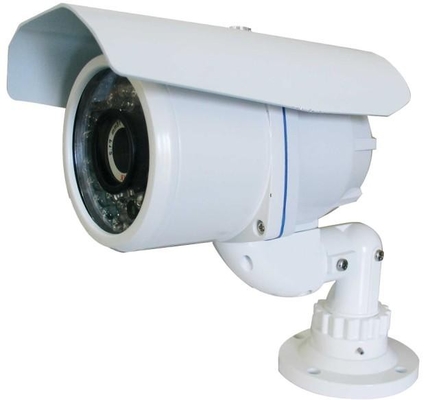

SONY 639 CCD + S3000 DSP, 700TVL 36 X D8 LED, 40M IR METAL CASING Super HD CCTV Cameras
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | high definition cctv camera,dome cctv camera |
||
|---|---|---|---|
SONY 639 CCD + S3000 DSP, 700TVL, 36 X D8 LED, 40M IR 8MM LENS METAL CASING HD CCTV Cameras
* 1/3 SONY 639 CCD + S3000 DSP, 700TVL high resolution
* 0.1 LUX /color illumination, 0 LUX IR ON
* 36X D8 max power 860Nm IR LED, 40 meters IR distance
* 90# full metal casing, IP66 waterproof level
* 8mm MTV lens, 3.6/6/12/16mm optional
* Special waterproof / Anti-cutting bracket included
* 9-18V wide range power input
* Double glass, anti-fog design
Specifications:
|
Model |
BS-T670UP |
|
|
Filter |
Double Layers Crystal |
|
|
Sensor |
1/3″ SONY 639 CCD + S3000 DSP |
|
|
Signal |
PAL |
NTSC |
|
Pixels |
752(H)×596(V) 570K |
698(H)×496(V) 480K |
|
Line |
600TV |
|
|
Illumination |
0Lux / IR ON |
|
|
Lens |
f= 3.6 / 6 / 8 /12 /16 mm Lens Optional |
|
|
IR LED |
36pcs Φ8mm High Power IR LED |
|
|
IR Distance |
40 Meter |
|
|
Vertical |
50Hz |
60Hz |
|
Horizontal |
15.625KHz |
15.734KHz |
|
Clock |
28.375MHz |
28.636MHz |
|
Scanning |
2:1 Interlace |
|
|
S.N.R |
≥50dB |
|
|
E.S |
1/50-1/100,000s |
1/60-1/100,000s |
|
W.B |
Auto Tracking |
|
|
B.L.C |
ON |
|
|
A.G.C |
ON |
|
|
Gamma |
0.45 |
|
|
Video Output |
1Vp-p, 75Ω |
|
|
IP Rating |
IP66 |
|
|
Bracket |
waterproof Especial Bracket |
|
|
Power |
DC/9-18V |
|
|
Dimension |
23*13*12cm |
|
|
Volume Weight |
0.8kg |
|
