Product Details:
Payment & Shipping Terms:
|
High Light: | high definition cctv camera,dome cctv camera |
---|
Specifications:

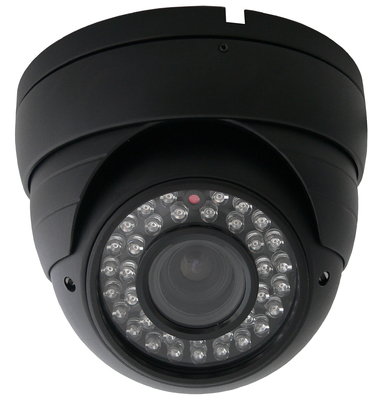

Model | BS-T670WD | |
Filter | Double Layers Crystal | |
Sensor | 1/3″ SONY 639 CCD + S3000 chipDSP | |
Signal | PAL | NTSC |
Pixels | 752(H)×596(V) 570K | 689(H)×496(V) 480K |
Line | 700TV | |
Illumination | 0Lux / IR ON | |
Lens | Vari-focal lens 4-9mm | |
IR LED | 36pcs Φ5mm High Power IR LED | |
IR Distance | 30 Meter | |
Vertical | 50Hz | 60Hz |
Horizontal | 15.625KHz | 15.734KHz |
Clock | 28.375MHz | 28.636MHz |
Scanning | 2:1 Interlace | |
S.N.R | ≥50dB | |
E.S | 1/50-1/100,000s | 1/60-1/100,000s |
W.B | Auto Tracking | |
B.L.C | ON | |
A.G.C | ON | |
Gamma | 0.45 | |
Video Output | 1Vp-p, 75Ω | |
IP Rating | No | |
Power | DC/9-18V | |
Volume Weight | 1kg |
Description:
* 1/3″ SONY 639 CCD + S3000 DSP, 700TVL high resolution
* 0.1 LUX /color illumination, 0 LUX IR ON
* 36 X D5 max power 860Nm IR LED, 30 meters IR distance
* full metal casing, IP66 waterproof level
* Vari-focal lens 4-9mm
* 9-18V wide range power input
* Double glass, anti-fog design
