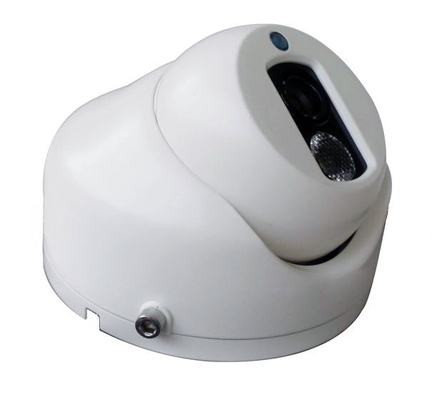

9 - 18V Wide Range, 700TV High Resolution IP66 25 Meters IR Dome HD CCTV Cameras
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,outdoor cctv camera |
||
|---|---|---|---|
9 - 18V Wide Range, 700TV High Resolution IP66 25 Meters IR Dome HD CCTV Cameras
* 1/3 SONY 639 CCD + S3000 chip, 700TV high resolution
* 0.1 LUX /color illumination, 0 LUX IR ON
* 1 x IR array III, 25 meters IR distance
* full metal casing, IP66 waterproof level
* 3.6mm MTV lens, 6/8/12/16mm optional
* 9-18V wide range power input
* Double glass, anti-fog design
Specifications:
Model | BS-A688HP | |
Filter | Double Layers Crystal | |
Sensor | 1/3″ Sony Super Had II CCD + EFFIO-E DSP | |
Signal | PAL | NTSC |
Pixels | 752(H)×596(V) 570K | 689(H)×496(V) 480K |
Line | 700TV | |
Illumination | 0Lux / IR ON | |
Lens | f= 3.6 / 6 / 8 /12 /16 mm Lens Optional | |
IR LED | 1 x IR array III | |
IR Distance | 25 Meter | |
Vertical | 50Hz | 60Hz |
Horizontal | 15.625KHz | 15.734KHz |
Clock | 28.375MHz | 28.636MHz |
Scanning | 2:1 Interlace | |
S.N.R | ≥50dB | |
E.S | 1/50-1/100,000s | 1/60-1/100,000s |
W.B | Auto Tracking | |
B.L.C | ON | |
A.G.C | ON | |
Gamma | 0.45 | |
Video Output | 1Vp-p, 75Ω | |
IP Rating | No | |
Power | DC/9-18V | |
Volume Weight | 0.8kg | |
