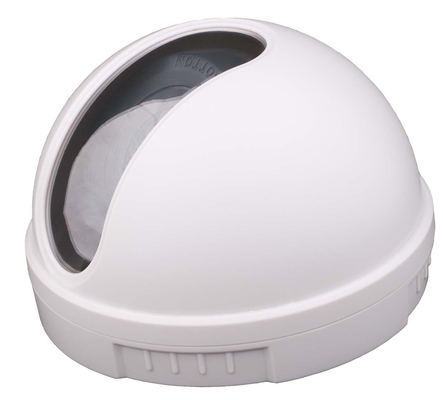

SONY 700TVL HD high resolution camera with S3000 DSP, 960 x 597 resolution dome camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,outdoor cctv camera |
||
|---|---|---|---|
Description::
* 1/3 SONY Super Had II + S3000 DSP 700TVL high resolution
* 0.5 LUX /color illumination, 0.1LUX / BW
* 2.5 Inch mini plastic shell
* 3.6mm MTV lens, 6/8/12/16mm optional
* 12V DC power input 60W
Specifications:
|
Model |
BS-T670SD |
|
|
Filter |
Double Layers Crystal |
|
|
Sensor |
1/3″ Sony Super Had II + S3000 DSP |
|
|
Signal |
PAL |
NTSC |
|
Pixels |
960(H)×596(V) 570K |
960(H)×496(V) 480K |
|
Line |
700TV |
|
|
Illumination |
0.5Lux / color, 0.1Lux/BW |
|
|
Lens |
f= 3.6 / 6 / 8 /12 /16 mm Lens Optional |
|
|
IR LED |
NO |
|
|
IR Distance |
NO |
|
|
Vertical |
50Hz |
60Hz |
|
Horizontal |
15.625KHz |
15.734KHz |
|
Clock |
28.375MHz |
28.636MHz |
|
Scanning |
2:1 Interlace |
|
|
S.N.R |
≥50dB |
|
|
E.S |
1/50-1/100,000s |
1/60-1/100,000s |
|
W.B |
Auto Tracking |
|
|
B.L.C |
ON |
|
|
A.G.C |
ON |
|
|
Gamma |
0.45 |
|
|
Video Output |
1Vp-p, 75Ω |
|
|
IP Rating |
NO |
|
|
Power |
DC/12V 65W |
|
|
Volume Weight |
0.4kg |
|
