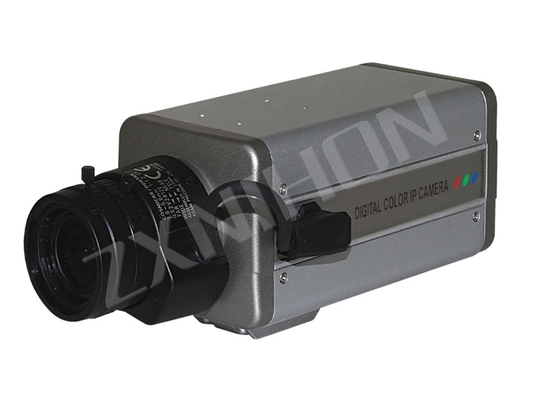

Wireless H.264 Compression Waterproof IP Network CCTV Box Camera With Remote Monitoring

large.img.alt
small.img.alt

Large Image :  Wireless H.264 Compression Waterproof IP Network CCTV Box Camera With Remote Monitoring Get Best Price

Product Details:
Place of Origin: China
Brand Name: NEON
Certification: CE, FCC, RoHs
Model Number: WBT102U
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Depend on Resolution
Packaging Details: Packed in Carton
Delivery Time: 1 Week
Payment Terms: L/C,T/T,Paypal
Supply Ability: 200,000 Set One Month
Detailed Product Description
High Light:

network ip security cameras

,

ip security cameras



Wireless H.264 Compression Waterproof IP Network CCTV Box Camera With Remote Monitoring

1) WBT102U

Gun type network cameras
BLC may be a high-profile,  alarm output interface
H.264 compression,  up to D1 image
Support for remote monitoring
Remote / Local real-time video and screenshots
Wireless capabilities
Support USB Function



CCD Resolution CCD(P/N) DSP WDR OSD
LL3M 420TVL A1329CA/A1325CA A12152 - -
HH4M 420TVL RJ2421/RJ2411 LR38627 - -
HH3M 420TVL RJ2321/RJ2311 LR38603 - -
SS4M 420TVL 227AK/226AK CXD3142 - -
SS3M 420TVL 405AK/404AK CXD3142 - -
SN3D 470TVL 405AK/404AK NVP2010 - -
SN3OD 470TVL 405AK/404AK NVP2020 - OSD
SN3Q 520TVL 409AK/408AK NVP2010 - -
SS3H 500TVL 409AK/408AK CXD4103 - -
SN3OQA 520TVL 409AK/408AK NVP2040 - OSD
SS3Q 550TVL 409AK/408AK CXD3172 - -
HL3Q 500TVL RJ2362CA/RJ2352CA RJ7 - -
HL3OQ 500TVL RJ2362CA/RJ2352CA RJ9 D-WDR OSD
SL3Q 600TVL 639BK/638BK RJ7 - -
SL3OQ 600TVL 639BK/638BK RJ9 D-WDR OSD
SL3OQA 600TVL 639BK/638BK RJ10 D-WDR OSD
SFE3D 500TVL 633BK/632BK EFFIO-E D-WDR OSD
SFE3H 600TVL 639BK/638BK EFFIO-E D-WDR OSD
SFE3Q 700TVL 673BK/672BK EFFIO-E D-WDR OSD

Specifications
Module HH4M SS3M SN3OQA SL3OQ SL3OQA SFE3Q
Image Sensor

1/4" COLOR

SHARP CCD

1/3" COLOR SONY Super HAD CCD

1/3" COLOR SONY Super HAD CCD

1/3" COLOR SONY Super HADⅡ CCD

1/3" COLOR SONY Super HADⅡ CCD 1/3" COLOR SONY Super HADⅡ CCD
Signal System PAL/NTSC
Effective Pixels

PAL:

500(H)×582(V)

NTSC:

510(H)×492(V)

PAL:

500(H)×582(V)

NTSC:

510(H)×492(V)

PAL:

752(H)×582(V)

NTSC:

768(H)×494(V)

PAL:

752(H)×582(V)

NTSC:

768(H)×494(V)

PAL:

752(H)×582(V)

NTSC:

768(H)×494(V)

PAL:

976(H)×582(V)

NTSC:

976(H)×494(V)

Resolution    420TVL 420TVL 600TVL 600TVL 600TVL 700TVL
DAC 12Bit 9Bit 10Bit 10Bit 10Bit 12Bit
Minimum Illumination  0.5LUX/F1.2 0.1LUX/F1.2 0.1LUX/F1.2 0.01LUX/F1.2 0.01LUX/F1.2 0.01LUX/F1.2
S/N Ratio (Y signal)   Over 48dB Over 58dB
Electronic Shutter Speed 1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC)
WDR - - - D-WDR D-WDR D-WDR
DNR - - - 2D-DNR 3D-DNR 2D-DNR
OSD - - OSD OSD OSD OSD
White Balance Auto White Balance Auto White Balance/Manual White Balance/Auto Tracking White Balance
Gain Control AUTO Auto/Manual/Off
Backlight Compensation  ON ON/OFF
Gamma Correction 0.45
Synchronization   Internal
Video Output  1.0Vp-p, 75Ω
Power Source DC12V (9V ~ 15V)
Operating Temp. -20℃~60℃ / 10% ~ 95%RH
