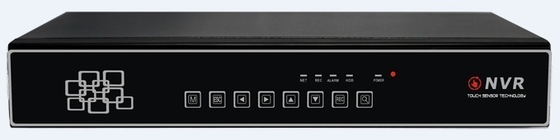

9ch 960p NVR Network Video Recorders , 9ch Audio Professional Digital Video Recorder

large.img.alt
small.img.alt small.img.alt

Large Image :  9ch 960p NVR Network Video Recorders , 9ch Audio Professional Digital Video Recorder Get Best Price

Product Details:
Place of Origin: China
Brand Name: BOSCOM
Certification: FCC, CE, ROHS
Model Number: BSC-N6109AK
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: 335MM*252MM*50mm(1U height)
Delivery Time: 3 DAYS
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
Video Compression Format: H.264 Operating System: Embedded LINUX OS
Two-way Audio: 1ch Audio Compression Format: Adpcm
High Light:

network digital video recorder

,

network video recorder

9ch 960p NVR Network Video Recorders , 9ch Audio Professional Digital Video Recorder



System

Main Processor

Hi3520A

Operating system

Embedded LINUX OS

Video spec.

Video compression format

H.264

Display Image Resolution

720P@30fps;960P@30fps;1080P@30fps

Playback Image Resolution

720P@30fps;960P@30fps;1080P@30fps

Motion Detection

can setup 192(16×12)pcs motion detection area eachchanneland

 multi-level sensitivity(1-6 levels adjustable)

Privacy Masking

depends on ipc

Audio spec.

Audio compression format

adpcm

two-way audio

1ch

Recording

Recording Mode

Manual Recording, Motion Detection Recording,

Time Recording, Alarm Recording,

Recording storage

HDD,Network

Frame rate

30 fps NTSC;25fps PAL

Recording Playback

Max suport 4ch960P or 2ch 1080P synchronously playback

Backup Mode

Support HDD,USB Flash Disk store & backup

Video

Network Video Input

9ch

Network video access bandwidth

64Mbps

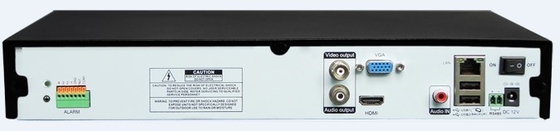

Video output

1ch CVBS(BNC), 1ch VGA and 1ch HDMI

Audio

Audio Input

9ch IPC Composite Audio

Audio Output

1ch(support two-way audio)

Alarm

Alarm Input

4ch Alarm input

Alarm Output

1ch Alarm Output

Other

Network

1x10/100Mbps,RJ45 port;

RS485

Standard 485 port,support half-duplex, green terminal port

USB

2 USB 2.0 ports

HDD

support 2pcs SATA HDD inside

Power

DC +12V /4A

power consumption

16W-18W(not include HDD and PoE)

Operation temperature

0℃-+55℃

Operation humidity

10%-90%

Demension

335MM*252MM*50mm(1U height)

Weight

2.0--2.12KG(not include HDD)



9ch 960p NVR Network Video Recorders , 9ch Audio Professional Digital Video Recorder 0



9ch 960p NVR Network Video Recorders , 9ch Audio Professional Digital Video Recorder 1



9ch 960p NVR Network Video Recorders , 9ch Audio Professional Digital Video Recorder 2
