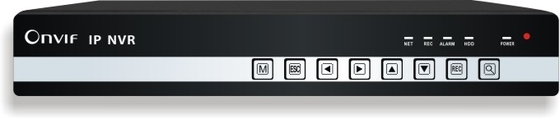

4ch 960P / 720P 1ch VGA Network Video Recorders , H.264 Video Compression Format

Large Image : 4ch 960P / 720P 1ch VGA Network Video Recorders , H.264 Video Compression Format Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	BOSCOM
Certification:	FCC, CE, ROHS
Model Number:	BSC-N6004SAK

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	25221342mm(0.8u height)
Delivery Time:	3 DAYS
Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

Recording Storage:

HDD,Network

Frame Rate:

30 Fps NTSC;25fps PAL

Recording Playback:

Max Suport 4ch 960P

Backup Mode:

Support HDD,USB Flash Disk Store & Backup

High Light:

security video recorder

network video recorder

4ch 960P / 720P 1ch VGA Network Video Recorders , H.264 Video Compression Format

System	Main Processor	Hi3520A
System	Operating system	Embedded LINUX OS
Video spec.	Video compression format	H.264
	Display Image Resolution	720P@30fps;960P@30fps;1080P@30fps
	Playback Image Resolution	720P@30fps;960P@30fps;1080P@30fps
	Motion Detection	can setup 192(16×12)pcs motion detection area eachchanneland multi-level sensitivity(1-6 levels adjustable)
	Privacy Masking	depends on ipc
Audio spec.	Audio compression format	adpcm
Audio spec.	two-way audio	No
Recording	Recording Mode	Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording,
	Recording storage	HDD,Network
	Frame rate	30 fps NTSC;25fps PAL
	Recording Playback	Max suport 4ch 960P
	Backup Mode	Support HDD,USB Flash Disk store & backup
Video	Network Video Input	4ch
	Network video access bandwidth	64Mbps

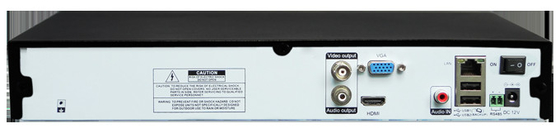

	Video output	1ch VGA and 1ch HDMI
Audio	Audio Input	no
Audio	Audio Output	no
Alarm	Alarm Input	no
Alarm	Alarm Output	no
Other	Network	1x10/100Mbps,RJ45 port
	RS485	Standard 485 port,support half-duplex, green terminal port
	USB	2 USB 2.0 ports
	HDD	support 1pcs 2TB SATA HDD inside
	Power	DC +12V /3A
	power consumption	16W-18W(not include HDD and PoE)
	Operation temperature	0℃－＋55℃
	Operation humidity	10%－90%
	Demension	25221342mm(0.8u height)
	Weight	1.5--1.8KG(not include HDD)
