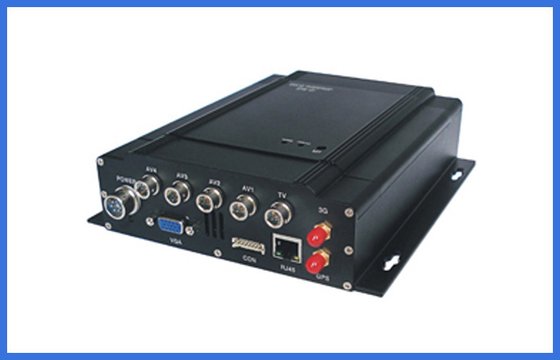

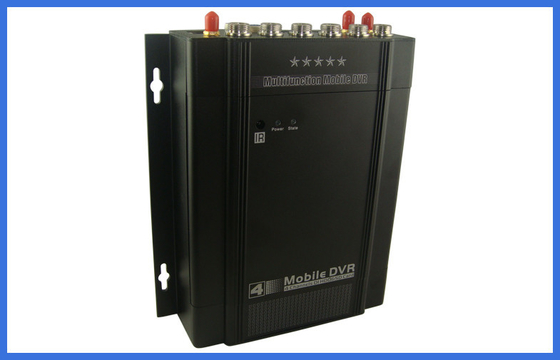

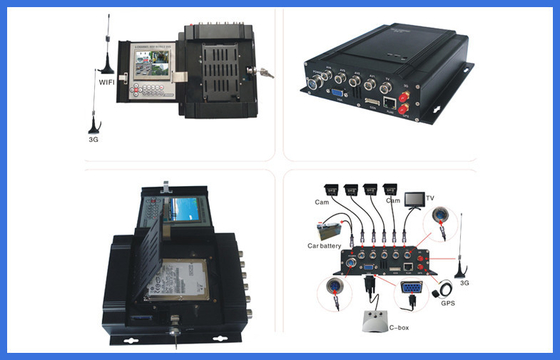

3G/wifi/GPS 4 channel video/audio vehicle DVR HDD/SD/USB flash drive storage with alarm/OSD
Quick Detail:
1. Support manual recording, alarm video and recording reservation;
2. Video resolution: D1/HD1/CIF/QCIF each optional; frame rate: 1- 25FPS (PAL), optional optional 1-30fps (NTSC);
3. Can be directly to the four road camera power supply; support four audio and video while recording;
4. The maximum can support the 2000G disk and the 32G SD card;
5. Case with safety lock, can set a user password to ensure that safety equipment;
6. Support 4 input alarm, 2 alarm output;
7. Support shutdown delay function, to ensure that in the event of an emergency can be preserved video;
8. The operation is simple, you can use the button, the remote controller, and to set the mouse;
9. Support VGA HD video signal output;
10. May the normal work in the voltage of DC8V to DC36 volts down;
11. Built-in 3.5 inch small display, convenient playback and menu settings;
12. With GPS function, playback can be synchronized view historical position of the vehicle by the GOOGLE map;
13. With 3G function, with WIFI function, support wireless video monitoring.
Description:
Applications:
The device performance is strong, wide application range, is suitable for bus, taxi,truck, ship, train and other mobile platform monitoring, also applies to companies,factories, buildings, home video monitoring environment using fixed field etc.
Specifications :
Working voltage | DC 12-36 V |
The maximum working current | Less than 2.5 A |
Working temperature | -25 to +75 DEG C |
The output voltage | DC12 V |
Maximum support memory | A maximum of 2.5 inch hard disk 2000GB, 64GSD card, U disk storage |
File compression format | H.264 |
Video mode | Manual video, motion detection, the boot record, a recording reservation, |
Image quality | The high school low grade 3 adjustable |
The video resolution | D1 (PAL 720*576, NTSC 720*480) |
Video frame rate | PAL (1~100fps adjustable) NTSC (1~120fps adjustable) |
The alarm signal | Four input two output + |
Video signal | Four road four road video & Audio |
File storage mode | Book is full stop or automatic covering |
Network port | 10M/100M RJ45 |
The use of hard disk | 2.5 "SATA HDD |
Compatible cameras | CMOS & CCD |
GPS positioning | Support |
Product specifications | 194mm*180mm*50mm |
Video net weight | 2.5KG |
