2 channel SD card vehicle MPEG-4 DVR H.264 Digital Video Recorder

I'm Online Chat Now
Certification
China China Camera Online Market certification
China China Camera Online Market certification
We sincerely appreciate all the time and efforts during these years by improving your products, for your kind customer service.

—— Fabio

The products we order are working very well,I will place more orders with this company.

—— Mario

Highly recommended! it is a really trustworth and reliable vendor, good job!Hope to do a longterm business!

—— Mac Jordon

Good company, high quality cameras,good communication skills!

—— Garry Brian

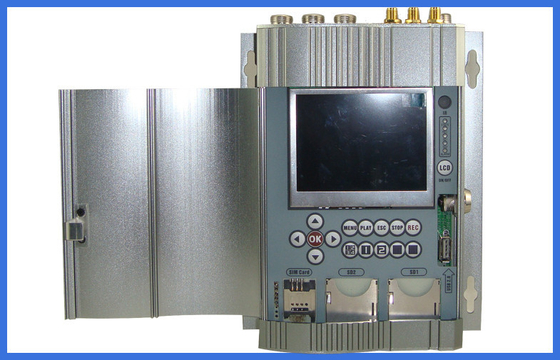

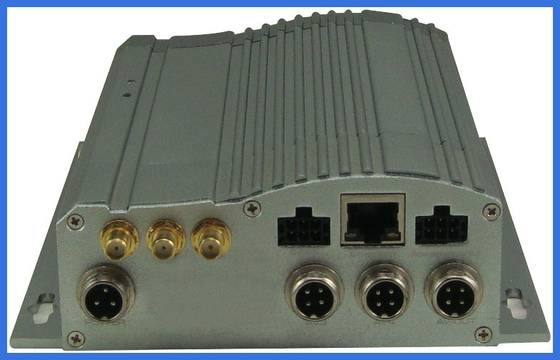

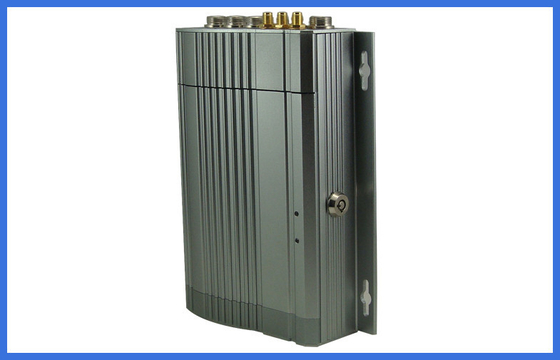

2 channel SD card vehicle MPEG-4 DVR H.264 Digital Video Recorder

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  2 channel SD card vehicle MPEG-4 DVR H.264 Digital Video Recorder Get Best Price

Product Details:
Place of Origin: China
Brand Name: Zhibosen
Certification: CC,CE,FC,ROSH
Model Number: ZBS-757
Payment & Shipping Terms:
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

nvr network video recorder

,

network digital video recorder



2 channel SD card vehicle MPEG-4 DVR Support motion detection video/audio NTSC/PAL





Quick Detail:





1. The boot into preview mode;
2. Support manual video, motion detection recording, video recording reservation and pre boot, video;
3. The pre record function: namely, in preview mode, press the REC key, the video recorder can be key before 5 or 10 seconds of video and audio clips are recorded to video file;
4. A recording reservation functions: that is, through the method of preset time period, that in the preview mode the VCR in the specified period of time to achieve timing video recording;
5. Support two video + audio video;
6. Support two D1 resolution real-time video;
7. In the resolution for the QVGA case, use the 32GB SD card can continuously recording 48 hours;
8. With the date and time settings and ID settings;
9. Automatic matching camera system (NTSC/PAL);
10. Two maximum support 32GB of SD card, can be set to record is full stop or automatic covering;
11. Chinese, Portugal, English menu, support software upgrade;
12. The unique delay shutdown function, can effectively ensure the safe save file;
13. The host can also supply to the two cameras;
14. The use of aluminum alloy shell firm, all adopt self-locking aviation joint, seismic design;
15. Convenient for the driver when driving on the machine operation.







Description:





ZBS-757 is a new generation of high-performance police and vehicular digital video recorder, this machine uses MPEG-4 video compression technology, video resolution up to D1 720X480 pixel, the number of frames per second up to 30fps; it maximum support 64GB of SD card, is a real full real-time, high definition, low power consumption, dual channel professional digital video recorder. it can connect two cameras (AV1, AV2), and the realization of dual channel real-time synchronous video (recording), the external display device can freely switch between AV1 and AV2, and can be compatible with any CCD, CMOS camera; its image file recorded directly stored in the SD card. The user can see at any time in the TV, monitor and mobile phone, also can be the SD card image file stored on any personal computer.
Accessories:757 machine 1 pcs; key 1pcs; AVP combination cable 2pcs ; instructions for use of the 1pcs (AV); video output cable 1pcs; infrared remote controller 1pcs; power supply and control(PDC) combination cable 1pcs; the control box 1pcs.



Applications:





The device performance is strong, wide application range, is suitable for bus, taxi,truck, ship, train and other mobile platform monitoring, also applies to companies,factories, buildings, home video monitoring environment using fixed field etc.





Specifications :





The product model ZBS757
Working voltage DC12V (suggested by a special supply)
The maximum working current (including special camera) Less than or equal to 800mA
Working environment temperature 0 ~+55 OC
Output voltage (camera work for) DC12V
The way of power supply The vehicle power supply
An external camera number 2 Road
The number of recorded signal 2 Road real-time synchronous video (audio + video)
The camera application The common CMOS and CCD camera
The maximum capacity of SD card 32GbSD card 2
Video compression format MPEG-4
The video resolution The optional D1 720X480
The number of frames per second video The optional 30fps/25fps
The longest continuous recording time About 32 hours of /720X480/25fps
File storage method "Recorded in full stop" and "automatic covering" optional
Image display. External display
Control mode Hand control and infrared remote control
Technology upgrade Software upgrades via SD card
Host weight 1.5Kg
Appearance specifications 138mm*170mm*45mm
Housing material Aluminium alloy
Waterproof case The host is not waterproof





Competitive advantages:





good price, reliable quality, guarantee of delivery, best services
