Description:
* Motion Detection alarm via E-Mail and FTP
* Supports SD Card storage

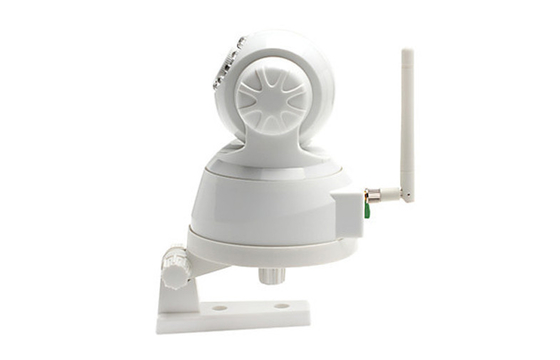

* 720P HD Pan/Tilt Wired/Wireless IP Camera
* P2P Feature for Easy Remote Access
* Free DDNS Service Embedded
* H.264 video Compression
* Supports two-way Audio
* Day/Night Surveillance, IR LEDs On/Off Auto Switch
* Compatible with free Central Management Software
* Compatible with free iOS and Android APP
* Supports WPS - One Button Push Secure Wireless Connection
* Supports IEEE 802.11n Wireless Connection
* Supports WEP, WPA and WPA2 Encryption
* Built-in Mic & Speaker, Audio Jack for External Mic & Speaker
Specifications :
ITEMS |
HD9816W |
|
Image Sensor |
Sensor |
High Definition Color CMOS Sensor |
Display Resolution |
1280 x 720 (1Megapixels) |
|
Min. Illumination |
0 Lux (With IR Illuminator) |
|
Lens |
Lens Type |
Glass Lens |
focal length |
f:2.8mm |
|
Aperture |
F2.4 |
|
Angle of View |
70° |
|
Video |
Image Compression |
H.264 |
Image Frame Rate |
30fps maxmium, downward adjustable |
|
Resolution |
720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) |
|
Stream |
dual stream |
|
Image adjustment |
The hue, brightness, contrast, saturation, sharpness are adjustable |
|
Flip image |
flip and mirror |
|
Infrared mode |
Automatic or manual |
|
Pan/Tilt Angle |
Horizontal:355° & Vertical: 150° |
|
Night visibility |
11pcs IR-LEDs, night vision range up to 8 metres |
|
Audio |
Input/Output |
Supports two-way audio |
Audio Compression |
PCM/G.726 |
|
Network |
Ethernet |
One 10/100Mbps RJ45 port |
Wireless Standard |
IEEE802.11b/g/n |
|
Data Rate |
IEEE802.11b: 11Mbps(Max.); |
|
Wireless Security |
WEP, WPA, WPA2 |
|
WPS |
Supports WPS one button push wireless connection |
|
Network Protocol |
IP,TCP,UDP,HTTP,HTTPS,SMTP,FTP,DHCP, DDNS,UPnP,RTSP,WPS |
|
System Requirements |
Operating System |
Microsoft Windows 2000/XP, Vista, 7, 8; |
Browser |
Microsoft IE6 and above version or compatible browser; |
|
Other Features |
Motion Detection |
Alarm via E-Mail, upload alarm snapshot to FTP |
Privacy Zone |
Set privacy zone manually |
|
User Accounts |
Three levels user role |
|
Firewall |
Supports IP Filtering |
|
Reset |
Reset button is available |
|
Power |
Power Supply |
DC 5V/2.0A |
Power Consumption |
7.5 Watts (Max.) |
|
Physical |
Dimension(LxWxH) |
117(L)*114(W)*129(H) mm |
Gross Weight |
680.7g |
|
Net Weight |
312.5g |
|
Environment |
Operating Temperature |
-20° ~ 55°C (-4°F ~ 131°F) |
Operating Humidity |
20% ~ 85% non-condensing |
|
Storage Temperature |
-20°C ~ 60° (-4°F ~ 140°F) |
|
Storage Humidity |
0% ~ 90% non-condensing |
|
Certification |
CE, FCC, RoHS |
|
Warranty |
Limited 2-year warranty(Not including US and China mainland) |
With a resolution of 1280x 720 pixels,three times the resolution of VGA resolution of other IP cameras,this HD IP camera allows you to record more details and cover more space without losing any detail.
Thanks to the free Zsight app,setting up remote connectivity to your mobile device is extremely straightforward.
View live video of the camera anytime from anywhere in the world using your smartphone,tablet or PC.
Applications:
The baby room monitoring, pets, dynamic monitoring, the elderly security monitoring, the monitoring of small shops, etc
