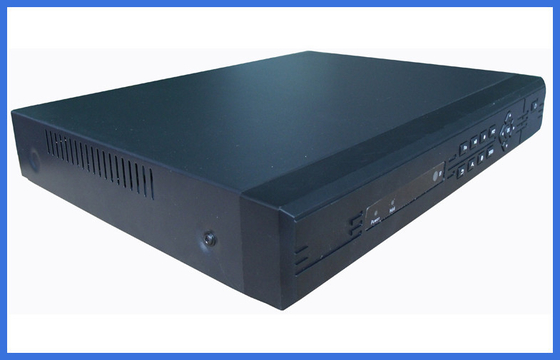

16 Ch BNC portable digital video recorder h.264 dvr Real - Time With VGA / TV / Audio
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | network video recorder,network digital video recorder |
||
|---|---|---|---|
16 Ch BNC portable digital video recorder h.264 dvr Real - Time With VGA / TV / Audio
Quick Detail:
1. Model Number: DVR-7216HC-H
2. Brand Name: ZHIBOSEN
3. Type: DVR
4. Channel: 16 channel
5. Video input: 16 channel BNC
6. Audio input: 4 channel
7. HDD: Support 2 pcs 2T SATA
8. USB: 2 pcs USB2.0
9. Place of Origin: Guangdong China
10. Gross Weight: 3kg
11. Package Size: 320x250x50mm
Description:
1. The use of video coding standard H.264 Baseline
2. Using Linux real-time operating system, a good network transmission performance, high stability
3. User-friendly design, support for mouse operation
4. Support for SATA hard drives, 2T mass storage
5. Support for graphical interface operation, support for multiple languages, support for annotations menu
6. Support motion detection, OSD, mosaics, real-time monitoring and other functions
Multiple backup
7. USB, recorders, network
8. Manual, time, motion detection triggered, the alarm is triggered, motion detection or alarm is triggered, and other video mode
9. With multi-tasking operating functions can be monitored while recording, playback, backup, network transmission and other operations
10. Support for multi-channel playback, according to record type, time, date and other search methods
11. Can be retrieved by video type, time, date, etc.
12. Two different user rights management, enabling users to set a password and password reset
13. Supporting the provision of management software NVidie Master, you can easily manage low cost networking
14. Support for mobile monitoring and alarm send e-mail
15. To optimize the hard disk formatting features, format the hard disk to increase the task queue, the user may specify multiple
Formatting the hard drive, formatted in the background can shorten the time to format the hard drive
16. Image masking and mosaic features, better protection of the user's core secrets will not be disclosed
17. Built-in watchdog function, the system automatically restart when the crash
18. Comes with DNS, no binding domain on a third-party platform for external network access.
19. Supports preview and playback digital zoom function
Applications:
Applies to family, community, roads, warehouses, underground parking, bar, schools, factories, companies, police stations, banks and other institutions.
Specifications :
| The main information | Linux 2.6 operating system ; |
| Recording, playback,preview,web browsing four workers to operate. | |
| Encoded video input | 4 video inputs : BNC jack ,1Vp-p, 75 ohms. |
| PAL (625 lines, 50 fields / s ),NTSC (525 lines, 60 fields / s ),SECAM (625 lines, 50 fields / s ) | |
| Encoded audio input | 4 audio inputs : RCA jack , 2Vp-p, 600 ohm |
| Display VGA output | DIN-15 socket 800 × 600 @ 60Hz, 1024 × 768 @ 60Hz, 1280 × 1024 @ 60Hz, 1440 × 900 @ 60Hz |
| Show CVBS output | BNC socket 1Vp-p 75 ohm |
| Audio Output | RCA jack , 2Vp-p, 600 ohm |
| USB Interface | Support for USB storage devices , USB mouse , USB burner. |
| RS422 | Duplex Transceiver |
| Network Interface | RJ45 10/100M adaptive |
| SATA Interface | Supports a SATA hard drive, support 2T hard drive. |
| Video coding standards | H.264 Baseline |
| Support system | PAL / NTSC / SECAM |
| Video Coding | PAL: 352 × 288 (CIF) NTSC: 352 × 240 (CIF) |
| PAL: 704x288 (Half D1) NTSC: 704x240 (Half D1) | |
| PAL: 704x576 (D1) NTSC: 704x480 (D1) | |
| Video Frame Rate | 25F/S/CH (PAL) 1,3,6,12,25 and user-defined . |
| 30F/S/CH (NTSC) 1,3,7,15,30 and user-defined . | |
| Video output rate | 32kbps-2048kbps (14M bytes / hour - 922M bytes / hour ) |
| Preview resolution | PAL: 704 × 576 (D1), horizontal lines 550 , 450 lines of vertical |
| NTSC: 704 × 480 (D1), 550 horizontal lines , 400 lines of vertical | |
| Playback Resolution | PAL: 352 × 288 (CIF), 704 × 576 (D1) |
| NTSC: 352 × 240 (CIF), 704 × 480 (D1) | |
| Operating Voltage | DC 12V 3A, positive with the negative , external power adapter |
| Ambient temperature | 0 degree - +50 degree |
| Humidity | 10% ~ 90% RH |
| Power Consumption | <10W ( without hard drive ) |
| Size | 320mm ( length ) x250mm ( W ) x50mm ( H) |
Competitive advantages:
good price, reliable quality, guarantee of delivery, best services
