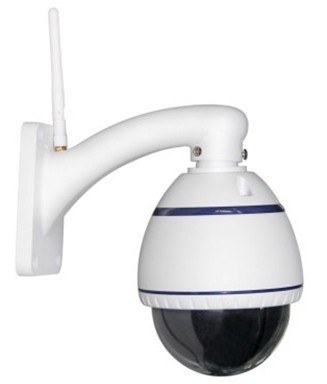

4X Optical Zoom Wireless IP Surveillance Cameras Dome With 1/4'' 1.0MP Progressive Scan
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | outdoor dome camera,wireless internet surveillance camera |
||
|---|---|---|---|
4X Optical Zoom Wireless IP Surveillance Cameras Dome With 1/4'' 1.0MP Progressive Scan
Specification:
1) Dual stream encoding / H.264 compression mode
2) 1/4" 1.0 Megapixel Progressive Scan CMOS OV9712, include 3-12mm 4X Zoom Lens
3) HD 720P 1280*720 D1:640*480 CIF:320*240
4) Support Multi-Screen software and CMS
5) Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
6) Pan: 360°/s Tilt:90°/s cruise 30°/s
2) 1/4" 1.0 Megapixel Progressive Scan CMOS OV9712, include 3-12mm 4X Zoom Lens
3) HD 720P 1280*720 D1:640*480 CIF:320*240
4) Support Multi-Screen software and CMS
5) Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
6) Pan: 360°/s Tilt:90°/s cruise 30°/s
Technical Parameters:
| Camera | ||||
| Image Sensor | 1/4" Progressive Scan CMOS OV9712 | |||
| Effective Pixels | 1280(H)×720(V) | |||
| Scanning System | Progressive | |||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/10000s | |||
| Min. Illumination | Color: 0. 1Lux, B/W: 0.01Lux ; | |||
| S/N Ratio | >50dB | |||
| Camera Features | ||||
| Max. IR LEDs Length | N/A | |||
| Day/Night | Auto / Color / B/W | |||
| Backlight Compensation | BLC | |||
| White Balance | Auto | |||
| Gain Control | Auto/Manual | |||
| Noise Reduction | 2D | |||
| Privacy Masking | N/A | |||
| Lens | ||||
| Focal Length | 4X Zoom 3-12mm lens | |||
| Max Aperture | F1.6 | |||
| Angle of View | 68.9°-20.5° | |||
| Mount Type | MTV mount (Interchangeable Lens) | |||
| Video | ||||
| Compression | H.264 / MJPEG | |||
| Frame Rate | Main Stream | 1MP HD 720P (1280*720) 25fps | ||
| Sub Stream | VGA 640*360 25FPS | |||
| Bit Rate | 32-4096Kbps,Supports CBR/VBR | |||
| Audio | ||||
| Compression | G.711 | |||
| Interface | 1/1 channel In/Out | |||
| Network | ||||
| Ethernet | RJ-45 (10/100Base-T) | |||
| Protocol |
TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP, FTP , NTP , PPPOE , SMTP , UPNP |
|||
| ONVIF | ONVIF Ver. 2.0 | |||
| Max. User Access | 10 users | |||
| Smart Phone | iPhone, iPad, Android | |||
| Wireless protocols | 802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2 | |||
| General | ||||
| Power Supply | DC12V | |||
| Power Consumption | <6W | |||
| Working Environment | -10°C~+60°C, 10%~90% | |||
| Ingress Protection | IP66 | |||
| Dimension | 182mm (L) * 128mm(W) * 128mm(H) | |||
| Weight | 1.22 Kg | |||
| Package Dimension | 200mm*200mm*200mm | |||
| Package Weight | 1.5 KG | |||
| Approvals | CE FCC RoHS | |||
Product Advantages:
1. Anti static and Anti-clutter
2. Constant voltage and current control of IR light
3. Precise control of IR light
4. Wide voltage designed CCD board
5. IC applied video amplifier
6. Day and night dual program conversion
7. Day and night light filter switch
8. Select the world famous supplier provide high-quality raw materials
Introduction:
BOSCOM TECHNOLOGY CO., LIMITED is a professional designer, manufacturer and exporter of professional high end, CCTV cameras, we introduce
technology and management from Taiwan, combine the Mainland, providing super high quality products at
competitive price.
We have high-tech facilities like dust-free room, dark room (simulate outdoor surrounding with no light reflection );
we use high -tech equipments like vector scope and wave oscilloscope; standard FL pattern box; high resolution
monitor constant temperature oven; light wave length and light intensity testing instrument etc. To ensure
production efficiency, and product guaranteed quality under 1‰. And we offer an industry leading with CE,
FCC and Rohs etc. Certificate.
BOSCOM not only designs and produces under our own brand "BOSCOM", but also offers OEM service for
other brands, with more than 200 elitists working in a 1500 square meters workshop, we is growing rapidly
as come out top corporation in China security industry.
Warranty:
◆ We guarantee all products are sold new.
◆ Full life warranty.
◆ Broken product we will replace new or refund providing there is no evidence of customer misuse or
alteration in two months from purchase day.
◆ Over two months, we confirm the broken situation first, then maintain or replacing accessories for customer.
Especial free service:
◆We can test the samples for you in China mainland, and will feedback real test result on time. Avoid you paid lots
of sample charge but without good effect.
◆We can process shipment together, collect or allocate from/to different supplier. Avoid you shipping lots of goods
& faulty items from/to diff supplier.
◆We can check the supplier or pay money for you, avoid you pay money to a unknown supplier who can not be
trust.
◆We can offer telephone, e-mail and network conversation technical support on products purchased. We can
working-out engineering project, answer the technique question.
Consignment:
We stock over 50 models and available for immediate delivery, other product delivery time need 3-4 days only. We
will use Fast courier service, such as FEDEX, TNT, DHL etc. You may submit your own courier account no. Or
advise you want courier, as: airway or sea way. You normally can expect to receive your items within 1-7 working
days.
