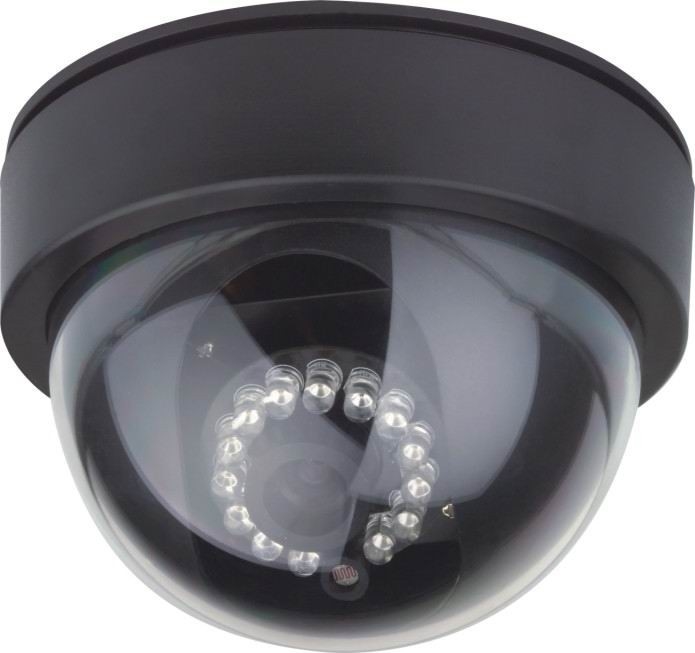

520TVL Black Dome CCTV Cameras With 3.6mm Board Lens , Plastic Housing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | ir dome cctv camera,home cctv camera |
||
|---|---|---|---|
520TVL Black Dome CCTV Cameras With 3.6mm Board Lens , Plastic Housing
Specifications:
1/3" Sony/Sharp CCD
420/480/520 TVL is optional
standard match 3.6mm board lens
Product features:
| *2.5" plastic dome camera |
| *Smart and beatiful outlook |
| *Hight transparent dome cover |
| *Sony/Sharp CCD |
| *420/480/520TVL is optional |
| *standard match 3.6mm lens |
Detailed Specifications Of The Parameters:
| Model | N54 | N48 | N42 | P42 | P42Q |
| CCDType | 1/3"SONY CCD | 1/3"SONY CCD | 1/3"SONY CCD | 1/3"SHARP | 1/4"SHARP |
| Pixels | PAL:795*596 | PAL:752*582 | PAL:500*582 NTSC:510*492 | ||
| NTSC:811*508 | NTSC:768*494 | ||||
| Horizontal Resolution | 540TVL | 480TVL | 420TVL | 420TVL | 420TVL |
| TV System | PAL / NTSC | ||||
| Level Synchronization frequency | PAL:15.625KHZ / NTSC:15.734KHZ | ||||
| Clock frequency | PAL:19.3125 / NISC:19.0699 | ||||
| Scanning Frequency | 2:1 Interlace | ||||
| Minimum lllumination | 0.01LUX | 0.1LUX | 0.01LUX | 0.1LUX | 0.1LUX |
| Sync.System | Synchronization | ||||
| S/N Ratio | 48 dB | ||||
| Electronic Shutter | PAL:1/50-1/100,000sec;NTSC:1/60-1/100,000 | ||||
| Gamma Correction | 0.45 | ||||
| Video Output | 1 Vpp,75 Ohms | ||||
| AGC | Auto | ||||
| Night vision | non | ||||
| Power supply | 12VDC(+/-10%) | ||||
| Current | 150mA | ||||
| Carton size | 595*360*200mm | ||||
| QTY/CN | 30pcs | ||||
| Dimenssions | 96*96*63 mm | ||||
| Weight | 0.14Kg | ||||
| Operating temperature | -10-45? | ||||
| Color | White/black | ||||
