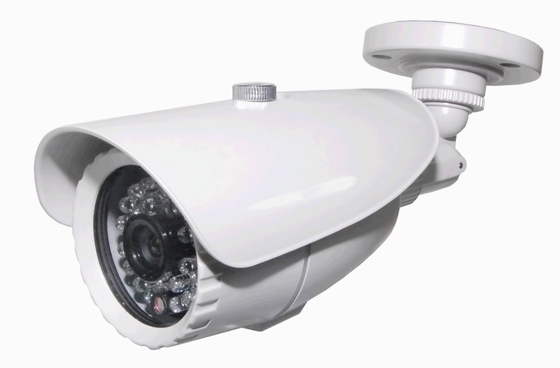

650TVL OSD WDR Color CCD Camera Weatherproof HLC , IR Distance 40m
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | color ccd camera,outdoor CCD camera |
||
|---|---|---|---|
650TVL OSD WDR Color CCD Camera Weatherproof HLC , IR Distance 40m
Specifications:
650TVL, WDR, OSD
40 meter IR Distance
Weatherproof outdoor
IR Camera Outdoor Color 1/3 CCD Sony 650TVL ARRY LED OSD
1/3 SONY EFFIO DSP CCD
650TVL, WDR, OSD
40 meter IR Distance
6mm Fixed Lens
2pcs Array IR LEDs, IR distance: 40M;
Weatherproof outdoor
With OSD Control Cable ( Multi- Languages)
Color 1/3 Sony EFFIO-E CCD DSP
0.01 lux 650TVL
ATR (Adaptive Tone Reproduction)
2D Noise Reduction
Preset OSD Menu (Multi- Languages)
Motion Detection
HLC (High Light Compensation)
Low Power Consumption
built-in Excellent Digital Wide Range - D-WDR Function
OSD - on Screen Menu can adjust, Color, Brightness, Contrast and so
SPECIFICATION :
|
TV SYSTEMS |
NTSC |
PAL |
|
CCD |
Sony 1/3” EXview HAD II |
Sony 1/3” EXview HAD II |
|
ICX672AK(960H) |
ICX673AK(960H) |
|
|
Effective Pixels |
480K(976H*494V) |
570K(976H*582V) |
|
Total Pixels |
520K(1020H*508V) |
610K(1020H*596V) |
|
Sensing Area |
5.0UM*7.4UM |
5.0UM*6.25UM |
|
Electronic Shutter |
1/60~1/10,000 |
1/50~1/10,000 |
|
Flickerfree |
ON/OFF |
|
|
Resolution |
650 TV Lines (Max.) / 700TV Lines(B/W) |
|
|
Min. Illumination |
Color : 0.1 Lux B/W : 0.01 Lux |
|
|
Video Output |
Video Output 1.0Vp-p/ 75ohm |
|
|
Gamma Correction |
0.45 |
|
|
S/N (Y Signal) |
52dB |
|
|
ATR |
ON / OFF (Analog WDR) |
|
|
O.S.D |
Embedded(8 Language Optional: ENGLISH/ JAPANESE/ GERMAN/ FRENCH/ RUSSIAN/ PORTUGUESE/ SPANISH/ CHINESE) |
|
|
Manual Shutter |
ON/OFF (~ 1/200Ksec) |
|
|
Privacy Masking |
4Windows |
|
|
Day & Night |
COLOR/BW/AUTO |
|
|
Motion Detection |
ON / OFF (4 Programmable Zones, Alarm output ON/FF) |
|
|
Synchronization |
Internal |
|
|
White Balance |
ATW / AWC / MANUAL/USER |
|
|
Mirror Function |
YES (left/right) |
|
|
DNR |
2D-NR |
|
|
BLC |
BLC/HBLC/OFF |
|
|
AGC |
ON/OFF (MAX. horizontally disposed) |
|
|
Camera name |
with common ASCII code table |
|
|
Working Temp. |
-10°C ~50°C /30% ~80% |
|
|
Storage Temp. |
-30°C ~60°C /20% ~90% |
|
|
Power |
DC12V, Less than 1.5Watts |
|
|
Dimension |
(L)223 x (W)116 x (H)135mm |
|
