Product Details:
Payment & Shipping Terms:
|
High Light: | ir digital color ccd camera,outdoor CCD camera |
---|
Main features:

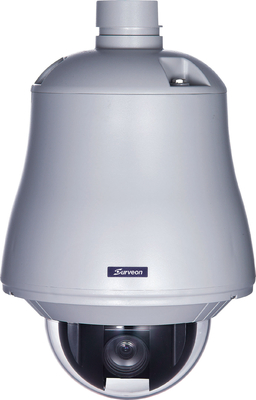

Indoor mini 3"High speed dome camera
1/4" CCD 570TVL(B/W), High perfermance DSP
Support 10×Optical zoom, 10× Digital zoom, lens 3.8-38mm
Support 360°continuous rotation,90°vertical rotation
manual rotation speed 300°/s,vertical speed 180°/s
support 255presets, 4cruises and 8 goups
wall mount or ceiling mount optional
Technical parameters:
Camera Type | Indoor Mini 3 Inch high speed dome camera |
Image Sensor | 1/3" SONY SUPER HAD CCD |
DSP | High-Performance DSP |
Horizontal Resolution | 650TVL(color),700TVL(B/W) |
Effective PiXel | PAL:752(H)x582(V),NTSC:768(H)x494(V) |
Lens | lens5.5-55mm |
Filter | Autoswitch |
Focus | 10×Optical zoom |
IR LED | 30pcs 5 IR LED |
IR distance | 30m |
Minimum Illumination | 0.1Lux (color),0.001Lux(B/W) |
S/N Radio | ≥ 50dB |
Backlight Compensation | on/off |
White Balance | Auto |
Electronic Shutter | 1/50~1/12000s |
Pan control | 360°continuous rotation |
Tilt control | 180°vertical rotation |
manual rotation speed | 0.1-220°/s |
Manual vertical speed | 0.1-120°/s |
OSD Menu | English |
Privacy mask | 4 zones |
Preset | 127 presets |
Cruise | 4 Lines |
Swing | 8 |
Communication | RS-485(Pelco-D, Pelco-P) |
Humidity | From -20°C-to +60°C |
Video output | 1.0Vp-p(75 OHM,BNC) |
Operation Humidity | <90%PH |
Power supply | DC12V 2A |
