High Light: | ir digital color ccd camera,outdoor CCD camera |
---|

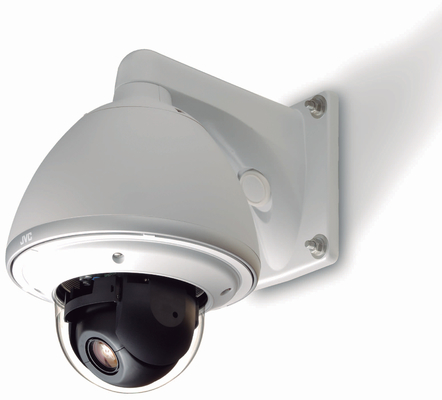

IR Digital Color CCD Camera 480TVL , High Speed Dome Security Camera
Network Intelligent High Speed Dome Camera
Features:
• Adopt high-performance SOC processing chip and platform, integrated high-performance video-coding accelerator, super performance RTOS
• Take H.264 compression algorithm over the vedio, supporting D1, CIF, QCIF coding format
• Take the coding format of G711 to store the audio, effectively saving network bandwidth
• Complete functions: voice intercom, PTZ control, alarm, user management
• Video bit rate: 40K ~ 4Mbps, the frame rate is adjustable continuously, supporting dual-stream
• The most advanced network forwarding server technology, which is easy for multi-user to access, realise the management of password acess
• Network function: Support TCP / IP protocol, built-in WEB browser in support of IE accessing, even to achieve control
• Support three kinds of alarming: video loss, motion detection, detector
• Integrate design, compact structure, internal data would not be lost in terms of blackout
• Precise motor-driven, swift reaction, operate stably and smoothly without trembling in any speed
• Horizontal 360 ° continuous rotation with no blind surveillance spot, vertical 180 ° automatic reversal, the function of manually limit can be set
• Support Pelco-P / D protocol, other agreements or protocal of high-speed dome camera or decoder in security, implementing the function of auto-discerning the transparent protocal
• Support zoom function, rotation speed automatically changes according to zoom values
• Auto iris, auto focus and auto white balance
• Owning the functions of wide dynamic range, backlight compensation and low illumination (color / black and white) automatic / manual conversion
• Chinese/English menu, operation of the screen alerts, supporting five kinds of typewriting
• 4 kinds of pattern scaning path, 4 tracking groups , with16 presets in each group
• 128 presets, the deviation can be controlled within 0.025 degrees, with a function of preset picture frozen
• Support the functions of lightning and anti-surge protection
• DC15V(2.5A)
Image Device |
1/4 inch SONY CCD |
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
|
Horizontal Resolution |
480TVL |
|
Minimum Illumination |
0.8Lux/F1.4(Color) , 0.05Lux/F1.4(B/W) |
|
White Balance |
Auto |
|
S/N Ration |
48dB |
|
Electronic Shutter |
P:1/50~1/10,000s N:1/60~1/10,000s |
|
D/N |
Color to B/W |
|
Digital Zoom |
-- |
|
Focus |
Auto/Manual |
|
Focal Length |
3.25-88mm,27x |
|
Rotation Range |
360° continuous rotation in horizontal, 180° auto reverse in vertical |
|
Rotation Speed |
Keying speed: 0.5°/s-280°/s, Maximum speed of preset cruising: 350°/s |
|
Proportional Zoom |
Support |
|
Preset |
128 pieces |
|
Cruising Scanning |
4 groups, each group can add 16 presets |
|
Pattern Scanning |
4 groups, total recording time over 10 minutes |
|
Data Restoring |
Can store the state before power-off, involving horizontal, vertical position and zoom values, restore to the previous state after restarting |
|
Network Interfaces |
10Base-T / 100Base-TX,RJ45 port( optical interface is optional) |
|
Image Resolution |
P:720x576,528x384,720x288,352x288,176x144 N:720x480,528x320,720x240,352x240,176x120 |
|
Video Compression |
H.264 |
|
Audio Compression |
G711 |
|
Audio Model |
OFF /audio input/audio output |
|
Networking Protocol |
TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, PPPoE |
|
Simultaneous Visiting |
At most 8 users |
|
Dual-stream |
support |
|
User Permission |
Multi-lever: manager, operator and just browsing |
|
Control Function |
horizontal/vertical, zoom, focus, mouse click and drag and drop, iris, call preset and auto model |
|
OSD Menu |
Chinese/English |
|
PTZ Control Protocol |
PELCO-P and PELCO-D(can be added), transparent protocol adaptive |
|
Power Supply |
DC 15V |
|
Power Consumption |
30W max( heater is turned on) |
|
Working Temperature / Humidity |
-35°C ~ 65°C( outdoor dome camera)/ -10°C ~ 50°C(indoor speed dome camera),Humidity less than 95% |
|
Protection Level |
P66(outdoor dome camera),Anti-lightning, anti-surge and wave |
|
Installation |
Multi installations are optional according to application environment |
|
Size |
Φ226(mm)×360(mm) |
|
Weight |
4.8kg |
